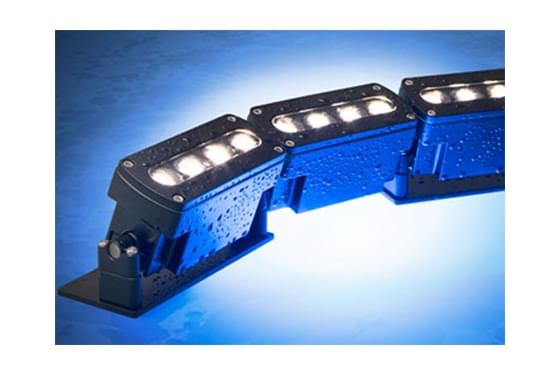

The Radiant 3D LED Flex 40 IP68 system is designed for use in underwater applications where curved lines of light are required. The system components are cast in 316 L stainless steel and are suitable for use in saline and chlorine environments including pools, fountains and marine projects.
2 or 4 x high power LEDs with lenses per module: For use in underwater applications where curved lines of light are needed. Each module - 2 or 4 x Cree XPE, XPG or XQE LEDs or Osram Oslon LEDs with Ledil Lisa or Larisa
lenses. Up to 4 Watts per 100mm module. 30 Volt - 48 Volt DC supply depending on application. Submersible to 2 mtrs depth. Integral LV constant current driver - internal driver boards are potted in silicone resin. Dimming options available: 1-10V, DMX and DALI. Separate dimming channel. Various LED colour temperature and CRI options available. Satin black, satin white or any RAL paint colour finish
See specification for more information or click here
