Downloads : technical modifications reserved

specsheet1694767841 (pdf)
brochure1694766870 (pdf)

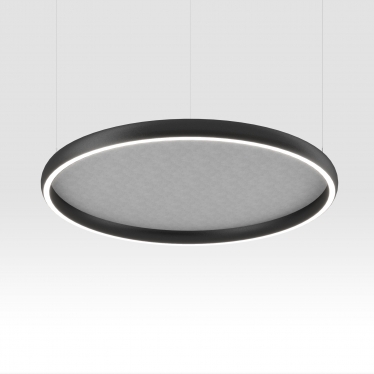

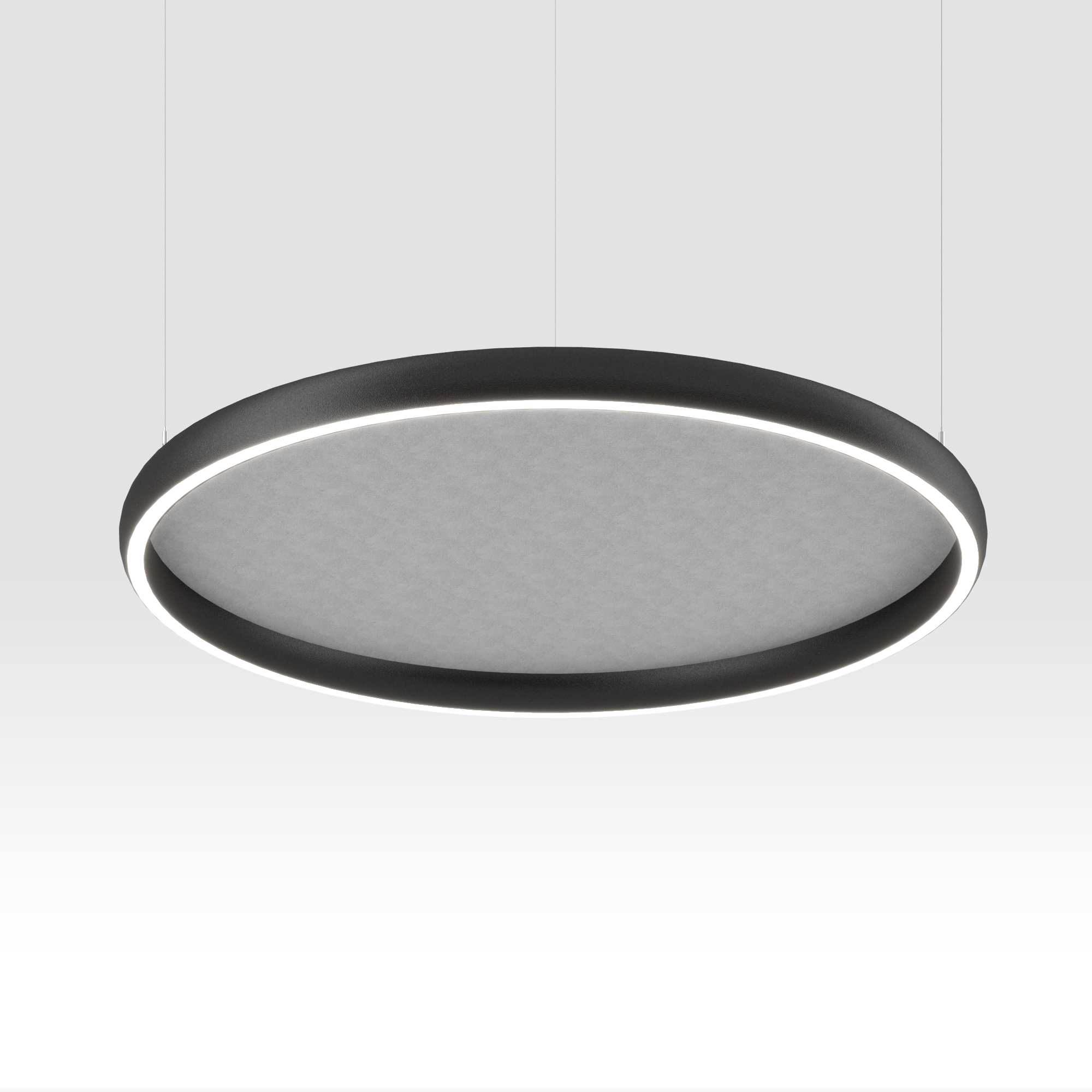

Beta-Calco MIDI ARC RING™ acoustic

The curved edge softens the classic architectural form and raises the impact of distinctive spaces.  Giving more curve to the curve, the smooth edges of MIDI ARC add a sleek and enticing appearance.

Remote emergency
Emergency option provides a 1.5 hour (3hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch. Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Remote mounting of drivers
Wire size 18 AWG - max distance (from fixture to drivers) 40' 12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installatio

HPF electronic drivers for 120-277V (EU-240V).

For more information click here
