Formalighting Cobra Infinito System & Linear

Designed by Ponctuelle.

Surface-mounted LED system in extruded aluminum.
Available in different length configurations starting from 120mm with an increment of 120mm.

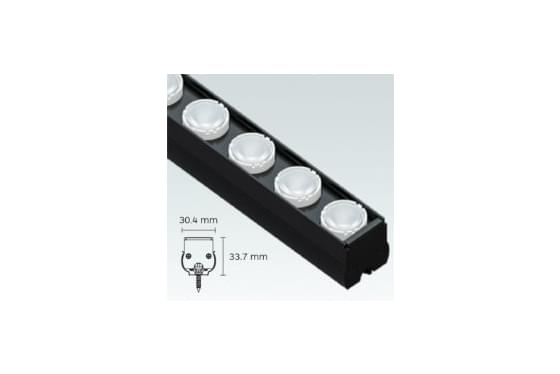

Section 28.5x30mm. Constant 30mm pitch between the LED.

Mounting options: U mounting clips.

Plastic free packaging.

LED Sources
Power LED. CRI: 90 | R9: >50
CCT: 2700K, 3000K, 3500K, 4000K.
3-Step MacAdam.
Other CRI and CCT options are available on request.

Beam angle: 10° / 17° / 29° / elliptical (15° x 50°).
Wallwasher optics.

Each Cobra fixture comes with dimmable integrated 48V DCDC driver.
Works with integrated power supply positioned remotely.

Mounting accessories included.

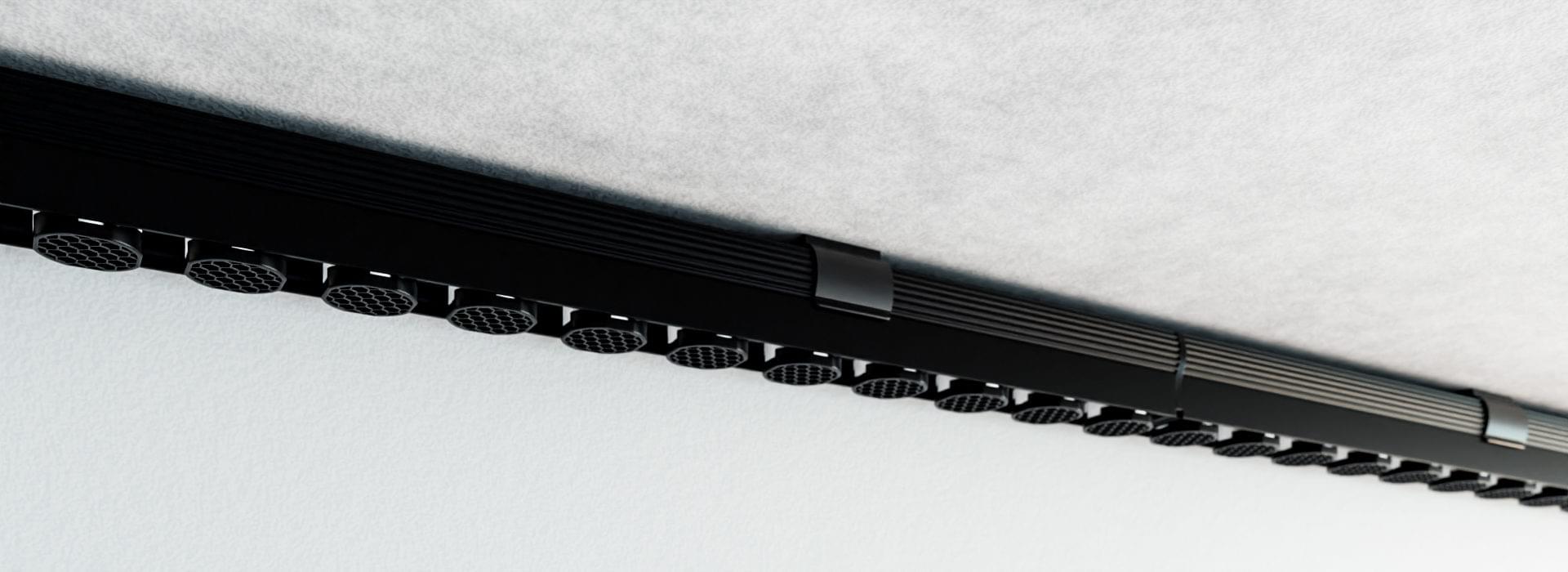

Honeycomb Art. 2F76, Louvre Art 2F74 to be ordered separately.
Power extension cable Art. 2E46 to be ordered separately.

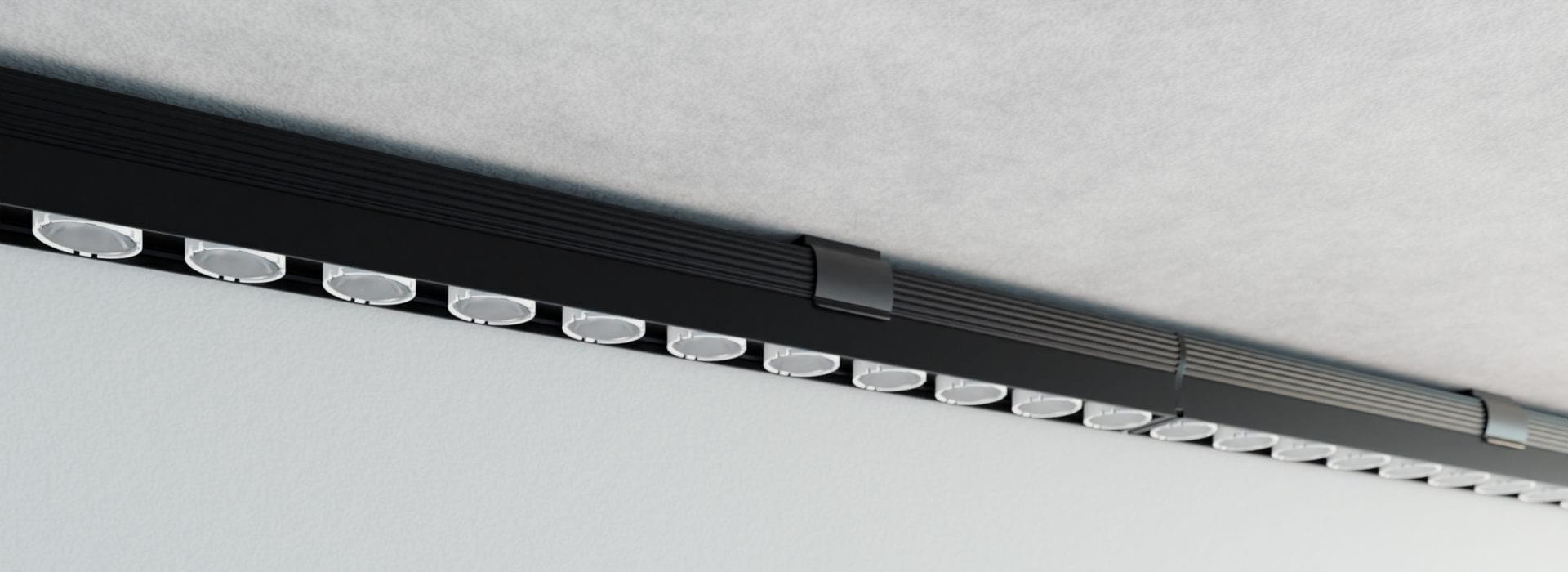

Ideal for indirect cove illumination, it creates a wall grazing effect for columns and architectonic surfaces. Its flexible structure maintains a constant pitch between LED, ensuring continuous illumination without any shadows or dark areas.

Application areas: Cove light, wallwash, residential, hospitality, restaurants, and museums.
