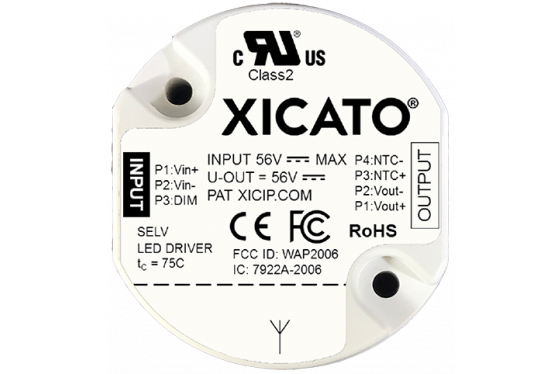

Xicato Intelligent Drivers (XID) are compact, DC-powered, wireless Bluetooth-controllable LED drivers that can provide constant current control to a wide variety of LED luminaires. XID can be mounted inside a luminaire or inside a track adapter, for example. Multiple XID can be mounted on 24V or 48V DC track powered by a single high capacity power supply unit (PSU), or can be individually powered by a separate, lower-powered AC-DC PSUs. Both XID models provide extremely accurate, programmable constant current output with deep, IEEE 1789-compliant dimming to 0.1% with Bluetooth wireless and 0-10V control.


Xicato’s XID drivers are compact, programmable, deep dimming drivers that enable Bluetooth and/or wired control of most LED sources up to 56W. This includes the entire Xicato XTM portfolio and virtually all third-party LEDs, COBs, and LED arrays. XID can be manufacturer-programmed to fit specific light sources and luminaires:

  • XID01-25 has a programmable maximum current of 350mA to 700mA and a maximum output of 28W
  • XID01-50 has a programmable maximum current of 700mA to 1400mA and a maximum output of 56W.


Xicato’s XID accept either 24V or 48V DC input, provide smooth, IEEE 1789-compliant dimming performance to 0.1%, can be programmed with beacons, and provide detailed operating data over Bluetooth or DALI.


See specification for more information
