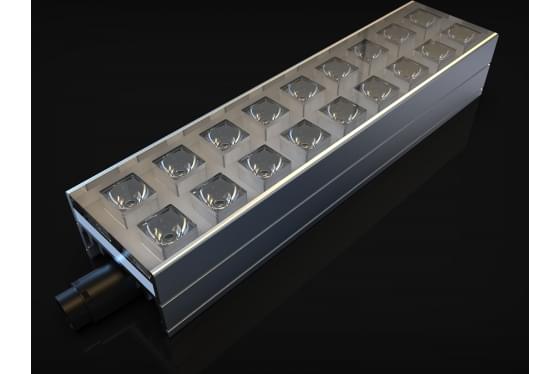

Vexica Lumaera 77 H TIR

High power LED luminaire with upto 50w per M of output. H shaped profile for rear cable management


Incorporating 2 rows of LEDs with optics. With the option to combine elliptical and wide beam angle lenses in the same luminaire to provide
an even light effect for tall facades. End to end seamless connections whilst maintaining optical led pitch. Using our advanced polyurethane resins to provide an IP67 rating as standard.


● LED grazing capabilities allowing end to end LED pitch
 perfect daisy chaining
● IP67 rated with cable management rear exiting the LED lumianire
● Proprietary optical potting technology allows the LED optic to be
 flush with the extruded surface for improved lit grazing effects
● Adjustable brackets or clips available
● 77 x 53.5 mm / 3.03” x 2.10”” cross section


See specifications for more information or click here
