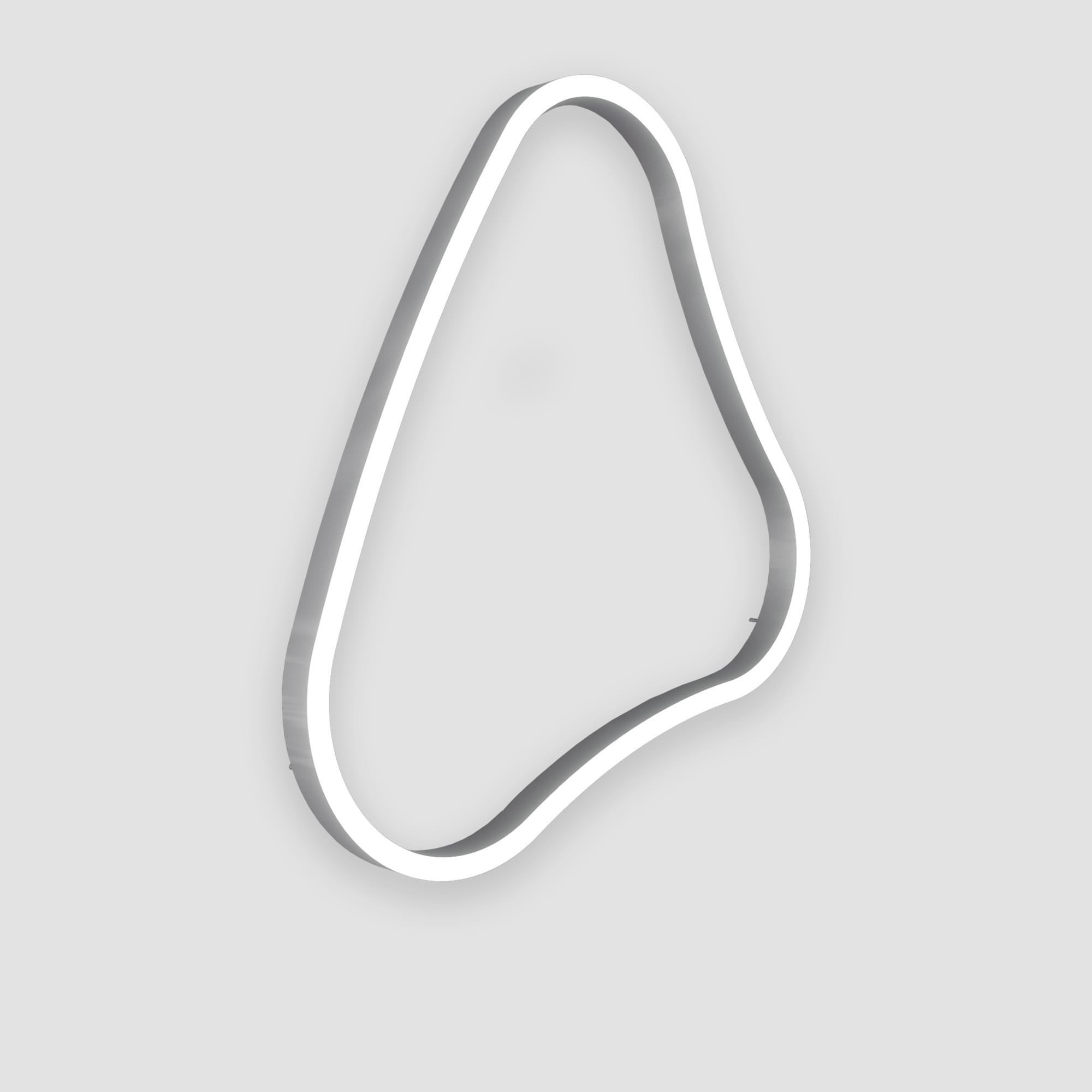

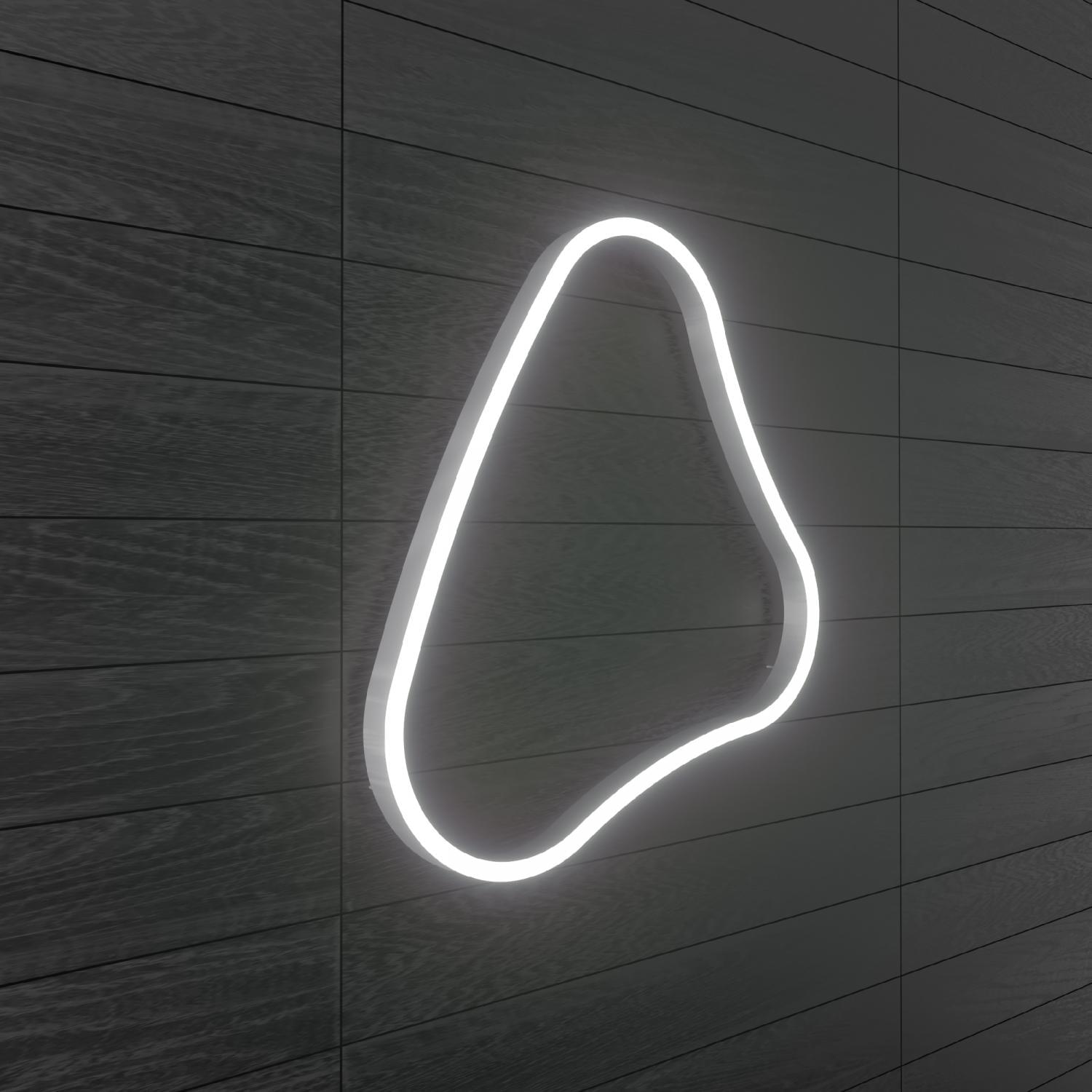

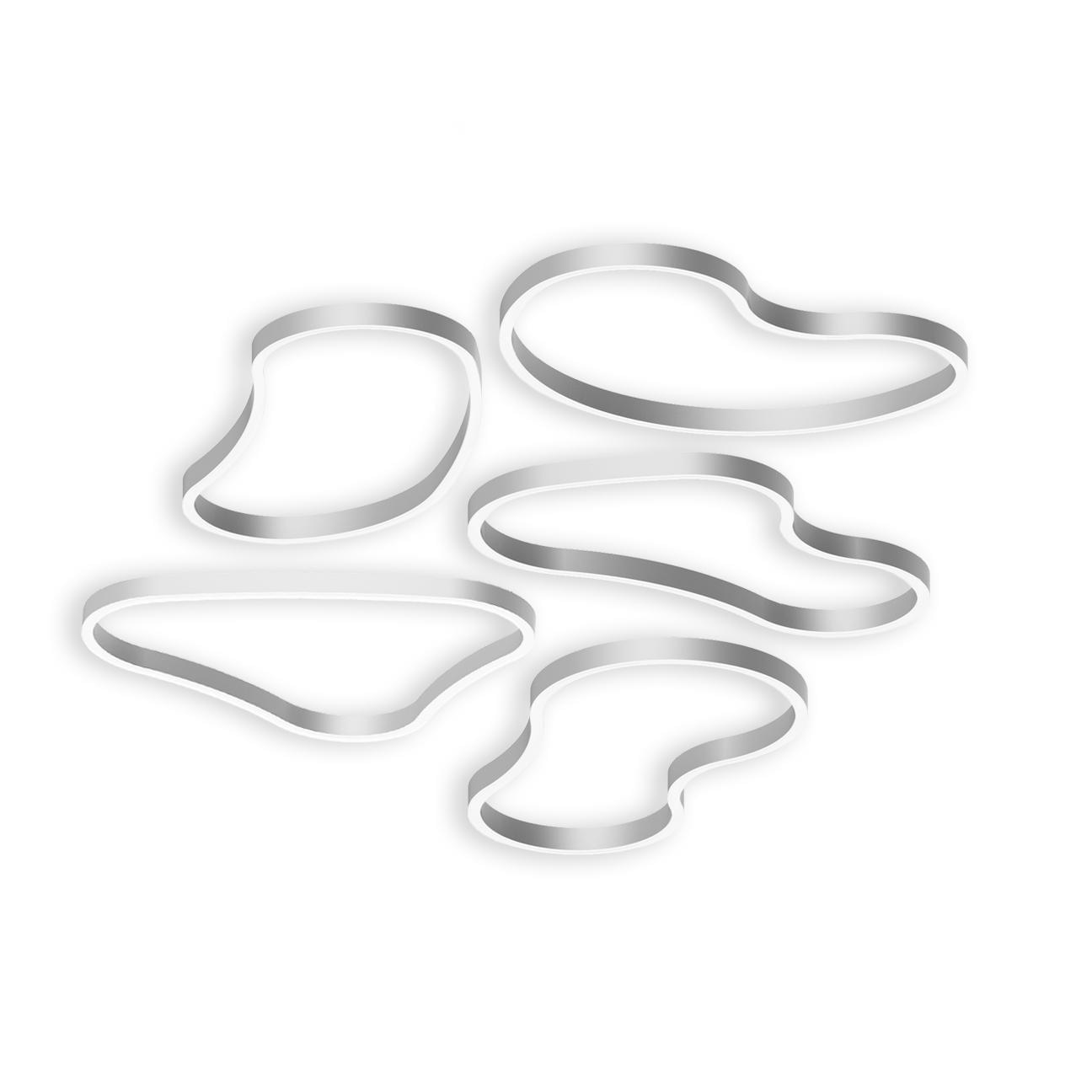

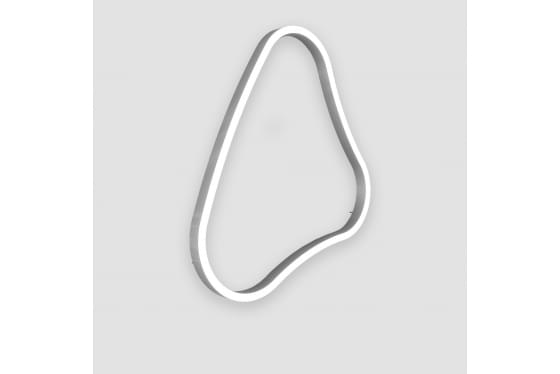

Beta-Calco Puzzle Wall

  • Body and trim: Steel and aluminium.
  • Finish: Powder coated.
  • Diffuser: Protruding Lens (2.1mm/0.08").
  • Remote Mounting Of Drivers: Wire Size 18 AWG - Max distance (from fixture to drivers) 40', Wire size 16 AWG - Max distance 60', Wire size 14 AWG - Max distance 90. Drivers must be accessible after installation.
  • Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’.
  • Mechanical: Luminaires mount directly over J box


See specification for more information.
