Downloads : technical modifications reserved

specificatie Betacalco cylindra (pdf)

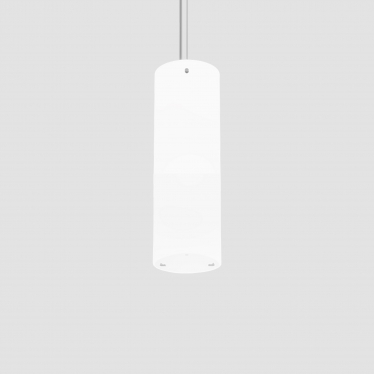

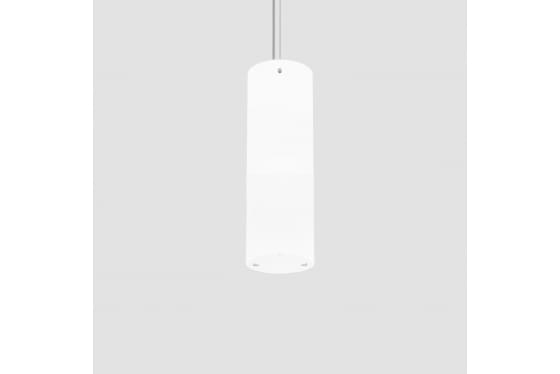

The Lux Company Cylindra

  • Body and Trim: Steel and aluminum.
  • Suspension: One stainless steel aircraft cable.
  • Power Cable: Silver braided.
  • Finials: Cylindrical buttons (CB), brushed stainless steel.
  • Finish: Canopy and tube suspension, white powder coated.
  • Driver: HFP for 120-277V (EU-240V), 0-10V, 10% dimming standard.
  • Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).
  • Mechanical: Mounts directly to or over an electrical junction box (by others - North America only).
  • L70 @25oC (77oF): > 50,000.



See specification for more information.
