Downloads : technical modifications reserved

Specification RCL Lighting DRX-1 (pdf)

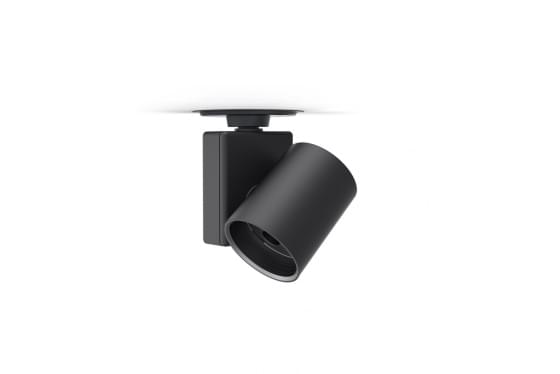

RCL Lighting DRX1

DRX1 is a lightweight and powerful remote controlled motorised spotlight, its compact design and tiny footprint offers a solution for restricted spaces without compromising on output and quality. DRX1 provides a minimalist aesthetic and small luminaire body, with the 115mm long fixture head measuring just 100mm in diameter, while delivering up to 1430 lumens from a wide selection of beam options including the new Variable Pinspot technology.

Beam Widths: 4°, 6°, 8°, 10°, 17°, 22°, 34°; Variable Pinspot: 8°-16°
Lumen Package Range: 540lm - 1430lm
Peak Intensity Range: 3739 CD - 56646 CD
LED Configuration Options: Single Source and Multi-Source


Voltage100-240V 50/60HZ
Mounting3-Circuit track2-Circuit track
 1-Circuit trackMonopoint
Lamp Type2700K LED3000K LED
 4000K LED
Colour Temparature2700K3000K
FinishWhite RAL9010Black RAL9005
Movement ControlHandheld remoteDMX
Dimming OptionHandheld controlDMX
 Dali dimming1-10V

Check the website: Remote Controlled Lighting for more details

Video Remote Controlled Lighting DRX1

See specifications for more information
