Specificatie RCL Lighting DR8 (pdf)

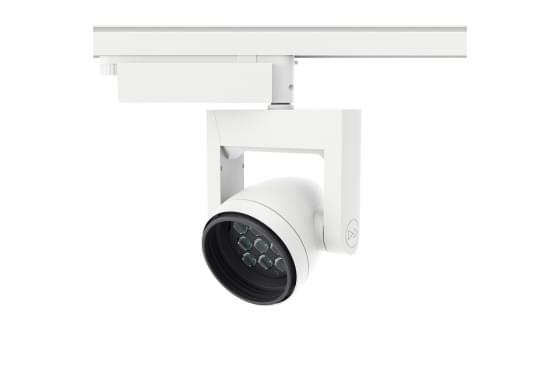

RCL DR8 Spotlight Track and Monopoint

Initially developed as a bespoke product for Christie’s auction house, DR8 has been refined to offer a number of variants in a compact footprint. Designed to disappear into ceiling troughs, DR8 has a tight turning circle of 200mm with ±165˚ pan and ±90˚tilt, allowing the user to easily navigate in narrow spaces. DR8 is available with a standard or high power lumen package.

  • Lumen Package Range: 1100lm - 2090lm
  • Peak Intensity Range: 6276 CD - 62615 CD
  • LED Configuration Options: Multi-Source


Voltage220-240V 50/60HZ110-120V 50/60HZ
Mounting3-Circuit track2-Circuit track
 1-Circuit trackMonopoint
Lamp type2700K LED3000K LED
 4000K LEDQR111
Colour temperature2700K3000K
Beam angle6° Optic10° Optic
 24° Optic
FinishWhite Ral 9010Black RAL9005
Movement controlHandheld remoteDMX
Dimming optionHandheld controlDMX
 Dali dimming1-10V


Specifications Remote Controlled Lighting


See specifications for more information
