Downloads : technical modifications reserved

specificatie Reggiani Lindro Square (pdf)

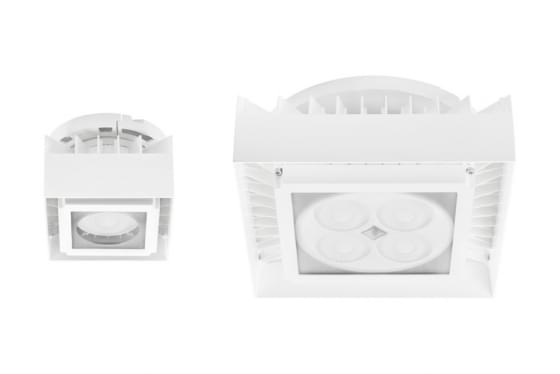

Reggiani Lindro Square Mini - Maxi

Lindro is a surface-mounted luminaIre for exterior and interior lighting applications requiring the IP66 protection rating - walkways, airports, stations, roofs, stadiums, carparks, petrol stations, swimming pools and spas. The part recessed into the false ceiling is fully protected by the metal housing and the pre-wired control gear has the same protection rating as the luminaire.



  • Luminous flux up to 17000 lm
  • Luminaire depth of only 110 mm
  • Excellent heat management by way of the passive heat sink
  • Extra-light tempered glass, resistant to thermal and mechanical shock (IK07)
  • Interchangeable Optical System (IOS)
  • Pre-wired power supply
  • Double cable gland for cascade connection
  • Accessories include a practical mobile bracket for adjustment
  • Operating temperature: – 20° to + 35°



See specification for more information or click here
