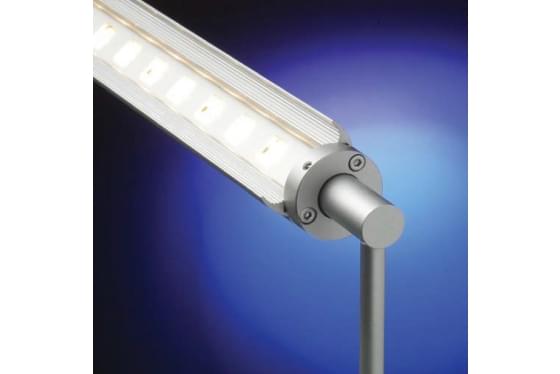

The Radiant LED Flaplight system has been developed for use in a wide variety of linear display and picture lighting applications including museums, galleries and retail. The extruded head incorporates adjustable and lockable hinged flaps to control glare and cut off to ensure excellent visual comfort.

The lighting head can be fitted with a variety of lenses to control the light distribution from the LEDs. The head can rotate between the fixing brackets and can be locked at the correct aiming angle with an Allen key.

The LEDs are driven at the correct power by integral LV constant current drivers which are dimmable, via a separate Radiant interface, with all systems including 1 - 10 V, DALI and DMX. Input voltage is 15 V DC and the remote power supplies can be located up to 50 mtrs from the luminaires. Either 25 mm or 50 mm LED pitch can be supplied depending on the light level required. Overall lengths are based on a 25 mm module and the metal work can be anodized / plated or painted to any RAL colour.

See specification for more information
