Precision Lighting Stacko Straight Fixed End

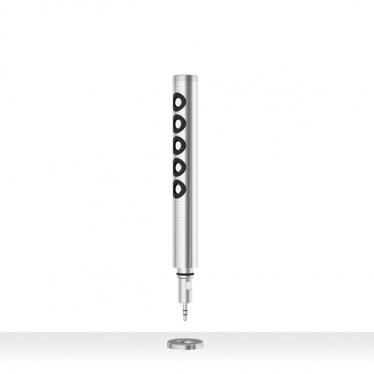

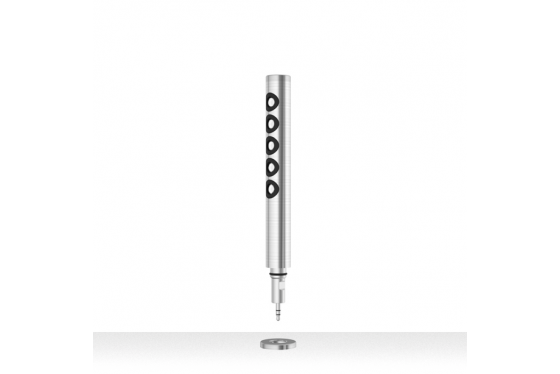

Stacko Straight Fixed End is a 5.6W miniature display orientated LED lighting module offering 4 beam distributions that is a part of the modular Stacko Collection which allows users to ‘stack’ lighting modules together to create unique lighting set-ups

It is an ‘End’ Stacko lighting module which means it closes a circuit and does not accept other Stacko lighting modules above it. It has a total of 5 light engines with a combined output of 510lm. Each 102lm light engine produces a Narrow beam with a peak intensity of 794 cd. Stacko Straight Fixed End is infinitely adjustable in 360 degree pan. The luminaire is compatible with our Minipoint system that enables a plug and play setup where luminaires can be simply swapped to suit changing lighting requirements.


  • Material: Machined AL 6063-T6 | Machined Brass
  • Finish: Brushed Aluminium | White RAL 9010 | Rubbed Bronze | Polished Brass | Satin Brass | Matte Black Anodised
  • System: Minipoint
  • Lockable: N/A
  • System Power: 5.6W
  • Gear/PSU/Driver: 1-10V | DALI | External 350mA CC


See specificaion for more information or click here
