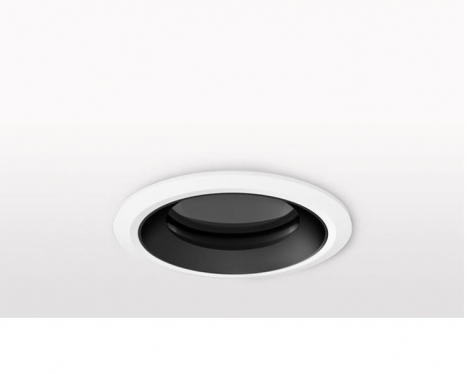

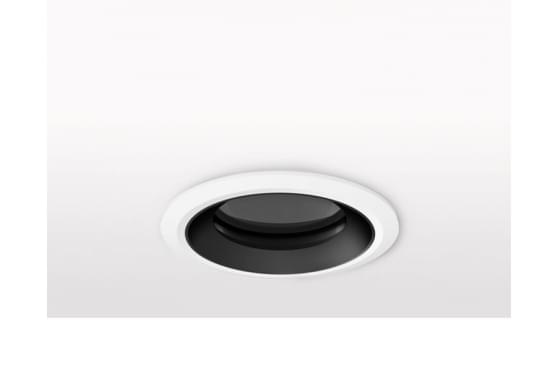

Precision Lighting Minimo 11 IP54 Fixed

Minimo 11 Fixed is an IP54 rated recessed LED luminaire providing high performance accent lighting from a compact source with minimal glare. Minimo 11 is perfect for use in colour-critical applications with 92CRI delivered from a single source LED module and available in two colour temperatures as standard. Tool-less, site changeable beam angles allow flexibility in varying environments. Machined from aerospace grade 6063-T6 aluminium or brass, Minimo 11 Fixed features a chamfered bezel with a choice of six finishes and an interchangeable chamfered aperture available in three finishes for complete aesthetic integration. Minimo 11 Fixed delivers a lumen package of 513lm at 6W.



CategoryInterior use only IP54
MaterialMachined Aluminium | Brass
ConfigurationChamfered Aperture
Cutout ø65mm
Bezel FinishesAluminium | Black | White | Rubbed Bronze
Polished Brass | Chrome
Aperture FinishesBlack | White | Satin Brass
Gear TypeDimmable Options Available
Colour Temperature2700K | 3000K



See specification for more information or click here
