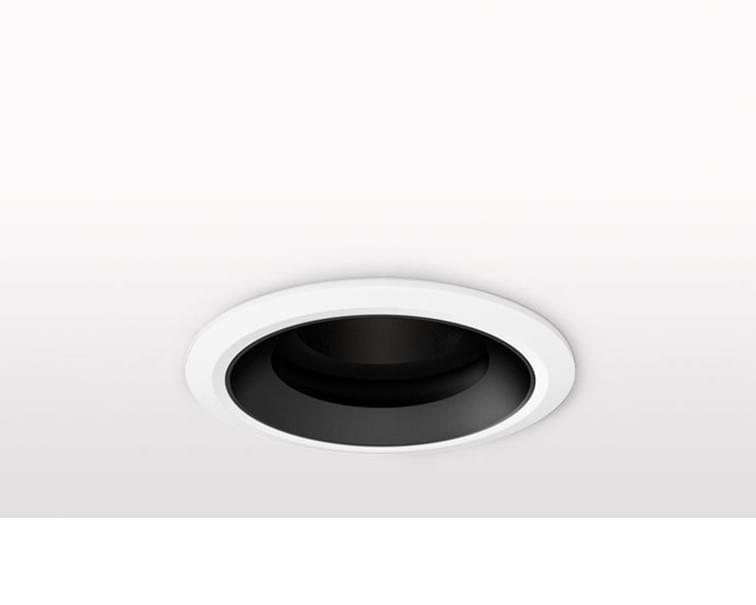

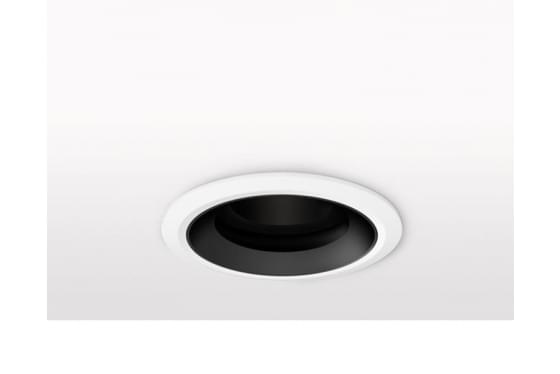

Precision Lighting Minimo 11 Fixed

Minimo 11 Fixed is a recessed LED luminaire providing high performance accent lighting from a compact source with minimal glare. Minimo 11 is perfect for use in colour-critical applications with 92CRI delivered from a single source LED module and available in two colour temperatures as standard. Tool-less, site changeable beam angles allow flexibility in varying environments. Machined from aerospace grade 6063-T6 aluminium or brass, Minimo 11 Fixed features a chamfered bezel with a choice of six finishes and an interchangeable chamfered aperture available in three finishes for complete aesthetic integration. Minimo 11 Fixed delivers a lumen package of 513lm at 6W.



CategoryInterior use only IP20
Material Machined Aluminium | Brass

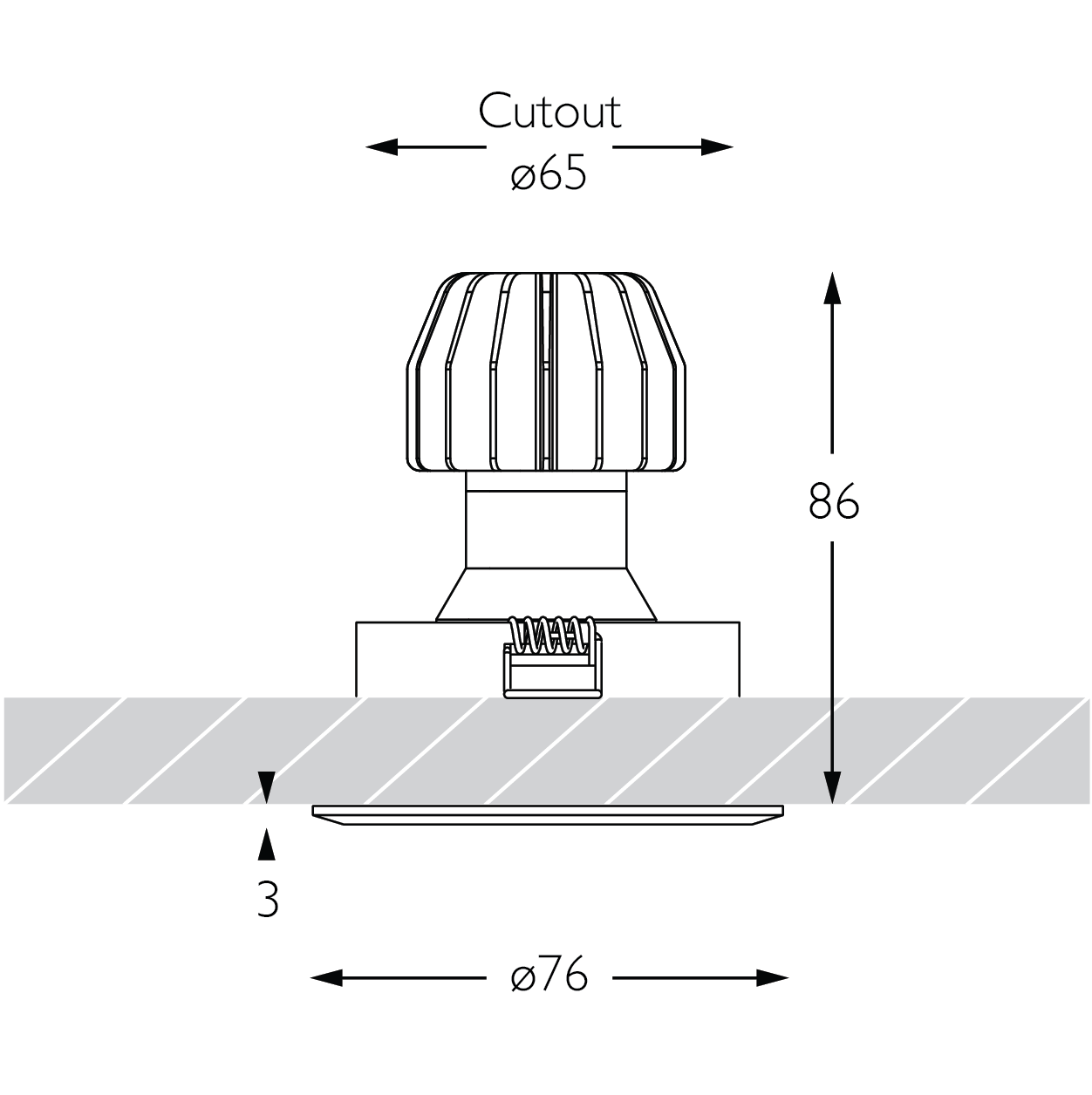

Cutout ø65mm
Ceiling Thickness3 - 25mm
Bezel Finishes Aluminium | Black | White | Rubbed Bronze
| Polished Brass | Chrome |
Aperture Finishes Black | White | Satin Brass |
Gear Type Dimmable Options Available



See specification for more information or click here
