Downloads : technical modifications reserved

specificatie precision lighting atto s (pdf)

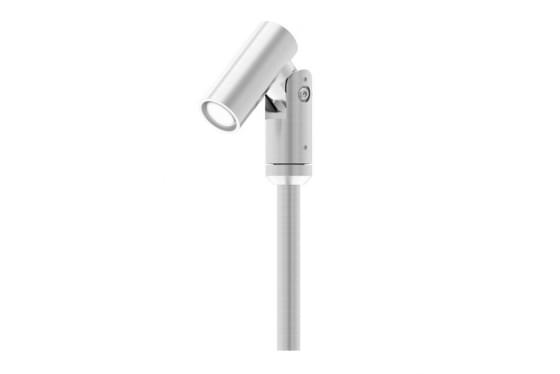

Precision Lighting Atto S

Atto S is a miniature, display orientated LED spotlight that comes as standard in white, black and brushed aluminium finishes. It has four site changeable optics for flexible distribution. The narrow spot beam in our 1W 102lm module has a peak intensity of 794cd. The Atto S has 360 degree bearing aided rotation and 180 degree constant torque tilt mechanism, both lockable. The height of the stem can be adjusted on site without the need for tools. There are 2 mounting methods, from the front using screws or from the rear using the M10 threaded stud - this can be factory removed as a custom order if it restricts installation.



Category:Interior use only IP20
Material:Aluminium | Brass
Lockable:Pan & Tilt
Accessories:Snoots
Systems:Fixed monopoint
Finishes:Brushed Aluminium | Black | White | Brass | Custom*
Colour Temperature:3000K
Optics FWHM:16 | 23 | 45 | 90



See specification for more information
