Lucent Lighting Soft 70 Trimless

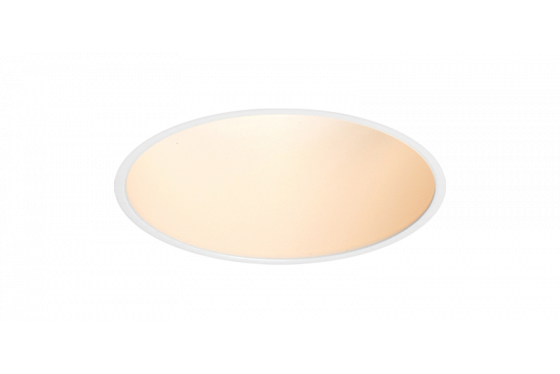

Soft70 trimless round fixed downlight with deep regressed light source and supplied with a separate die cast plaster-kit for plastered ceilings. Available in both White or Black finish as standard.
This product can accommodate a wide choice of LED light sources including our LED50 ONE family of modules, Xicato and retrofit MR16 & GU10 LED lamps.
The Lucent Lighting Soft 70 Trimless available in 2 types:
Lucent Lighting Soft 70 Fixed trimless
| Aperture | Ø 65mm |
| Adjustable | No |
| Overall Dimension | Ø 70mm |
| First Fix Requirement | Yes |
| Ceiling Cut-Out | Ø 79mm |
| Ceiling Thickness | 25mm max |
| Ingress Protection | IP20 or IP44 |
Lucent Lighting Soft 70 Accent trimless
| Aperture | Ø 65mm |
| Adjustable | 20° |
| Overall Dimension | Ø 90mm |
| First Fix Requirement | Yes |
| Ceiling Cut-Out | Ø 79mm |
| Ceiling Thickness | 25mm max |
| Ingress Protection | IP20 or IP44 |
See specification for more information.
