Lucent Lighting Micro 40 Pinhole Edge
A range of miniature downlights designed for niche interiors using the XPG2 LED. With a small diameter aperture and deep regressed LED for minimal glare. Can be installed into new plastered ceilings or trimless for a seamless appearance into new plastered ceilings. Available in two colour options 2700K and 3000K and 4 beam angles 15°, 25°, 30° and elliptical beam 18° x 33°.

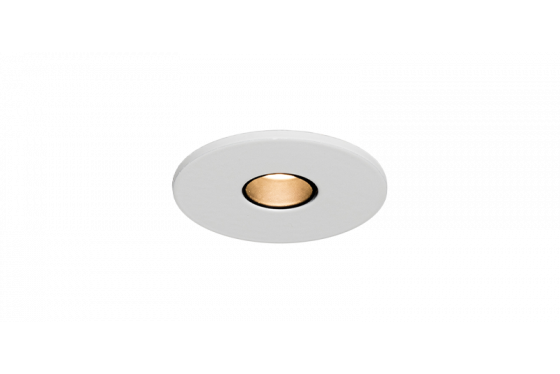

Micro40 Pinhole Edge Trim
| Overall dimension | Ø40 mm |
| Overall height | 33 mm |
| Ceiling Cut Out | Ø35 mm |
| Ceiling Thickness | 15 mm MAX |
| Ingress Protection | IP44 |
Micro40 Pinhole Edge Trimless
| Overall dimension | Ø40 mm |
| Overall height | 31 mm |
| First Fix Requirement | YES |
| Ceiling Cut Out | Ø37 mm |
| Ceiling Thickness | 15 mm MAX |
| Ingress Protection | IP44 |
See specification for more information.
