Lucent Lighting Micro 40 Focus Accent
A range of miniature downlights designed for niche interiors using the XPG2 LED. With a small diameter aperture and deep regressed LED for minimal glare. Can be installed into new plastered ceilings or trimless for a seamless appearance into new plastered ceilings. Available in two colour options 2700K and 3000K and 4 beam angles 15°, 25°, 30° and elliptical beam 18° x 33°.

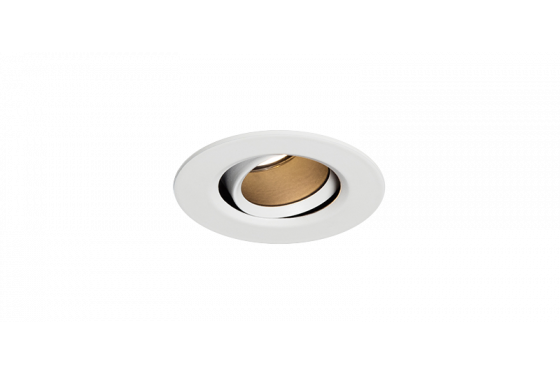

Micro40 Focus Accent Trim
| Adjustable | 20° based on 15mm ceiling thickness |
| Overall Dimension | Ø40mm |
| Overall Height | 45mm |
| Ceiling Cut Out | Ø36mm |
| Ceiling Thickness | 15mm MAX |
| Ingress Protection | IP44 |
Micro40 Focus Accent Trimless
| Adjustable | 20° based on 15mm ceiling thickness |
| Overall Dimension | Ø40mm |
| Overall Height | 43 mm |
| First Fix Requirement | Yes |
| Ceiling Cut Out | Ø37 mm |
| Ceiling Thickness | 15 mm MAX |
| Ingress Protection | IP44 |
See specification for more information.
