Lucent Lighting Line Flare 5LED
Five LED trimless downlight with low-glare flare apertures and separate plaster-kit for plaster ceilings. Available in black and white fine texture finish.
Also available with cube apertures.

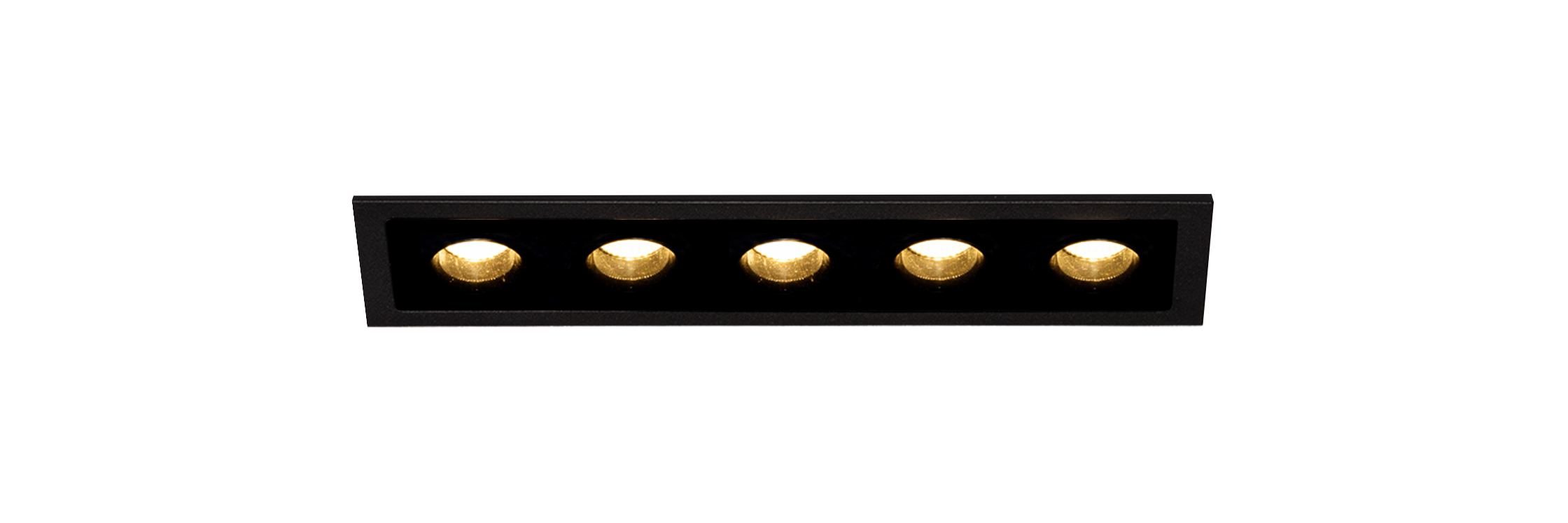

Line Flare 5LED trim
| Overall Dimension | 145 x 41mm |
| Overall height | 50 mm |
| Required Depth | 75 mm MIN |
| Ceiling Cut Out | 139 x 35mm |
| Ceiling Thickness | 25 mm MAX |
| Ingress Protection | IP20 |

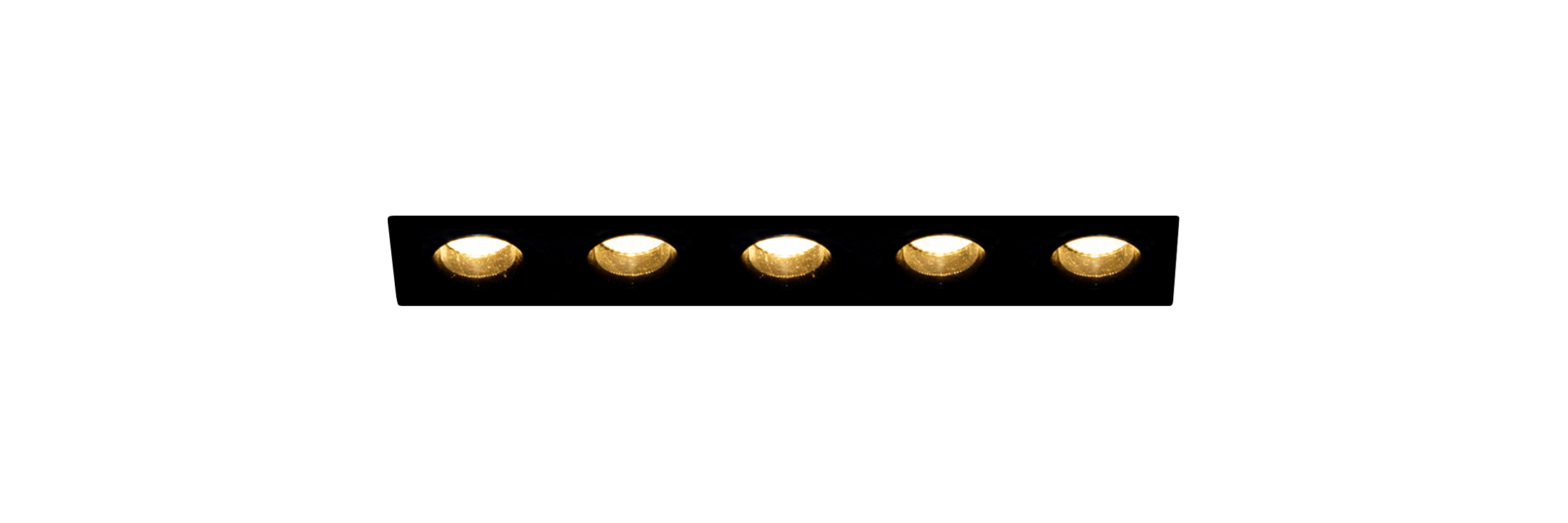

Line Flare 5LED trimless
| Overall Dimension | 133 x 35mm |
| Overall height | 50 mm |
| Required Depth | 75 mm MIN |
| Ceiling Cut Out | 139 x 35mm |
| Ceiling Thickness | 25 mm MAX |
| Ingress Protection | IP20 |
| First Fix Requirement | Yes |
See specification for more information.
