Lucent Lighting Line Flare 10LED
Ten LED trimless downlight with low-glare flare apertures and separate plaster-kit for plaster ceilings. Available in black and white fine texture finish.
Also available with cube apertures.

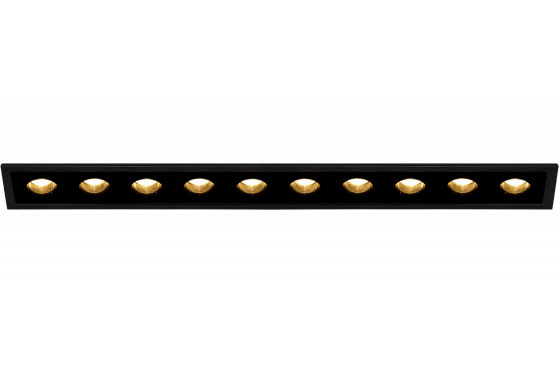

Lucent Lighting Line Flare 10LED Trim
| Overall Dimension | 280 x 41mm |
| Overall Height | 50 mm |
| Required Depth | 75 mm MIN |
| Ceiling Cut Out | 272 x 35mm |
| Ceiling Thickness | 25mm MAX |
| Ingress Protection | IP20 |
Lucent Lighting Line Flare 10LED Trimless
| Overall Dimension | 266 x 30 mm |
| Overall Height | 50 mm |
| Required Depth | 75 mm MIN |
| Ceiling Cut Out | 272 x 30 mm |
| Ceiling Thickness | 25 mm MAX |
| Ingress Protection | IP20 |
| First Fix Requirement | Yes |
See specification for more information.
