Downloads : technical modifications reserved
| specificationline5ledcubetrim1574252679 (pdf) |
| specificationline5ledcubetrimless1574252679 (pdf) |

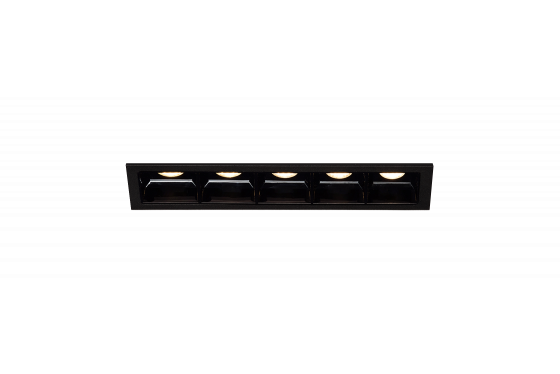

Lucent Lighting Line Cube 5LED
Five LED trimless downlight with low-glare cube apertures and separate plaster-kit for plaster ceilings. Available in black and white fine texture finish.
Also available with flare aperture.
Lucent Lighting Line Cube 5LED trim
| Overall Dimension | 145 x 41 mm |
| Overall Height | 50 mm |
| Required Depth | 75 mm MIN |
| Ceiling Cut Out | 139 x 35mm |
| Ceiling Thickness | 25 mm MAX |
| First Fix Requirement | IP20 |
Lucent Lighting Line Cube 5LED trimless
| Overall Dimension | 133 x 33 mm |
| Overall Height | 50 mm |
| Required Depth | 75 mm MIN |
| Ceiling Cut Out | 139 x 35 mm |
| Ceiling Thickness | 25 mm MAX |
| Ingress Protection | IP20 |
| First Fix Requirement | Yes |
See specification for more information.
