Downloads : technical modifications reserved

specifcationflare55wallwash (pdf)

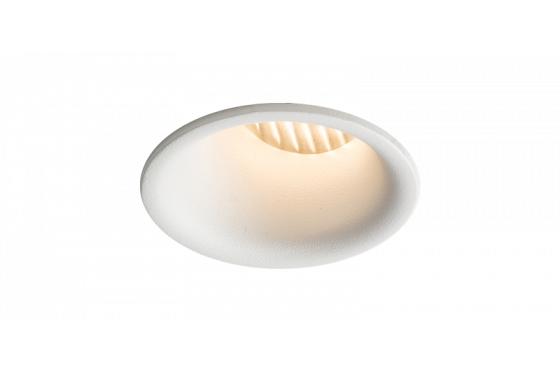

Lucent Lighting Flare55 Wallwash

Flare55 trimmed asymmetric wallwash downlight with flared aperture, frosted spread lens and minimal trim for installation into finished ceilings. Available in both White or Black finish as standard. This product can accomodate the LED35 family of modules.

ApertureØ30 mm
Overall DimensionØ55 mm
Overall Height87mm
Required Depth102mm
Ceiling Cut OutØ48mm
Ceiling Thickness25mm MAX
First Fix RequirementTrimless: Yes  Trim:No
Ingress ProctectionIP20-IP54

See specification for more information.
