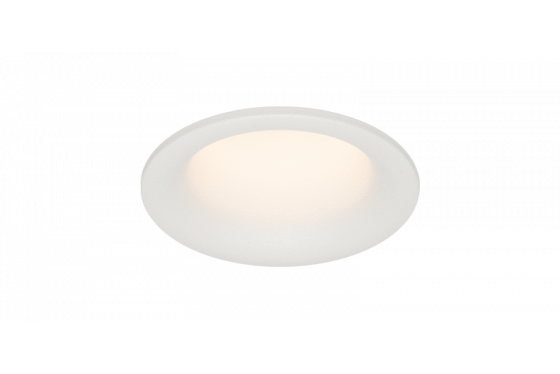

Lucent Lighting Flare55 Fixed

Flare55 fixed downlight with flared aperture with minimal trim for installation into finished ceilings. Available in both white or black finish as standard.

This product can accomodate the LED35 family of modules.

ApertureØ30 mm
Overall DimensionØ55 mm
Overall Height73mm
Required Depth88mm
Ceiling Cut OutØ48mm
Ceiling Thickness20mm MAX
Ingress ProctectionIP20-IP54
First Fix RequirementTrimless: Yes   Trim: No

See specification for more information.
