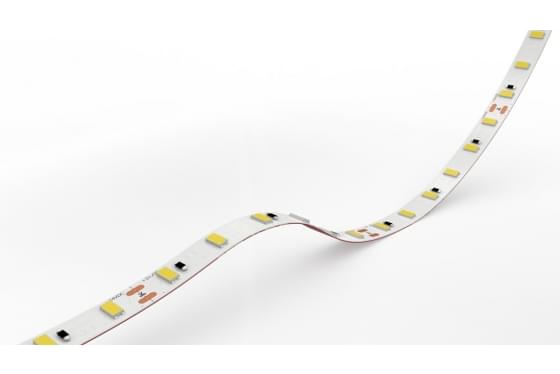

LED Flex Intense Flex 60
The Intense Flex range is the highest lumen output luminaire within the LED Flex range. Intense Flex’s remarkable light output and low power consumption also makes this product our most efficient LED Flex. We have worked tirelessly to introduce the Intense Range to work with new building regulations on lumen efficiency. The Lumen Line range is part of LED Flex’s commitment to manufacturing the most sustainable fixture of the future.
- Dimension: L5000/W10mm
- LED pitch: 16.67mm
- Beam angle: 120°
- Colours: White
- Bin/step: 3 Step MacAdam ellipse (+/-91K
- PCB increment: Power connection and cut point every 100mm
| CRI | Power consumption | Luminous flux Lm/M | Luminaire efficacy Lm/W | |
| 60 - 2700K | 95.0 | 24.83W | 1904.3 | 76.69 |
| 60 - 3000K | 94.7 | 24.4W | 1984.6 | 81.34 |
| 60 - 4000K | 94.2 | 24.23W | 2141.6 | 88.39 |
| 60 - 6000K | 94.6 | 24.34W | 2066.1 | 84.88 |
See specification for more information
