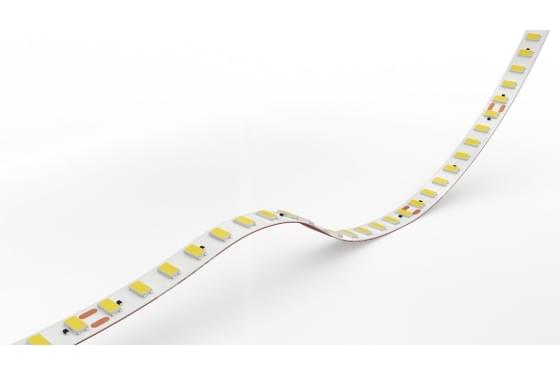

LED Flex Intense Flex 112
The Intense Flex range is the highest lumen output luminaire within the LED Flex range. Intense Flex’s remarkable light output and low power consumption also makes this product our most efficient LED Flex. We have worked tirelessly to introduce the Intense Range to work with new building regulations on lumen efficiency. The Lumen Line range is part of LED Flex’s commitment to manufacturing the most sustainable fixture of the future.
Cutting LED strips is very simple thanks to the cut lines along the strips. At each cut point there is a black line with copper solder pads that sit on each side. The copper solder pads make it so each strip piece is addressable even after being cut. This makes it possible to connect LED strips together or connect the strip in a different area of your home.
The LED strips have a 3M adhesive backing for simple mounting options. The low profile, flexible strip has a peel-off backing which exposes the 3M adhesive, making for a simple peel-and-stick install.
- Dimension L5000/W10mm
- LED pitch 8.92mm
- Beam angle 120°
- Minimum bend radius 10mm
- Control 0-10V/1-10V/DMX/DALI
- Bin/step 3 Step MacAdam ellipse (+/-91K
- PCB increment Power connection and cut point every 100mm
|CRI||Power consumption||Luminous flux Lm/M||Luminaire efficacy Lm/W|
|112 - 2700K||82.1||19.6W||2575||131.38|
|112 - 3000K||84.0||18.8W||2519||133.99|
|112 - 4000K||83.9||18.6W||2690||144.62|
|112 - 6000K||94.5||18.14W||2520||138.92|
See specification for more information
