Downloads : technical modifications reserved

Specificatie LED Flex DMX Flex RGB 32 (pdf)

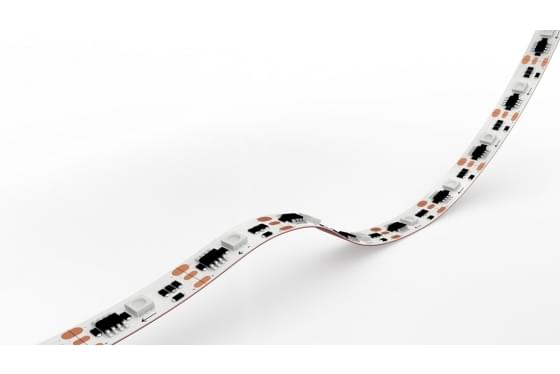

LED Flex DMX Flex RGB 32

The DMX Flex is a flicker-free modular system ideal for displaying videos and moving content. This product is an industry leading, auto addressing Pixel LED solution, designed for entertainment lighting. It utilises the Ultra Bright SMD technology. DMX Flex allows full control of each LED and can be mapped via your choice of media server or playback device.



Cutting LED strips is very simple thanks to the cut lines along the strips. At each cut point there is a black line with copper solder pads that sit on each side. The copper solder pads make it so each strip piece is addressable even after being cut. This makes it possible to connect LED strips together or connect the strip in a different area of your home.



Colour temperature: DMX Flex RGB 32
  • Cutting : 1 LED / 31.25mm
  • Efficiency: 116.67 LM/W
  • Power: 7.2 W/M | 0.6A/M
  • IP rating: IP20
  • Lumen: 840lm
  • Voltage: 12V DC
  • Product code: 010-2101



Colour temperature: DMX Flex RGB 32
  • Cutting : 1 LED / 31.25mm
  • Efficiency: 116.67 LM/W
  • Power: 7.2 W/M | 0.6A/M
  • IP rating: IP67
  • Lumen: 840lm
  • Voltage: 12V DC
    Product code: 010-2102



See specification for more information
