210-1400
210-1400 1354-slider-6100 1355-slider-6280 1517-slider-7030 1651-slider-7630

Downloads : technical modifications reserved

Specificatie Blade S™ (pdf)

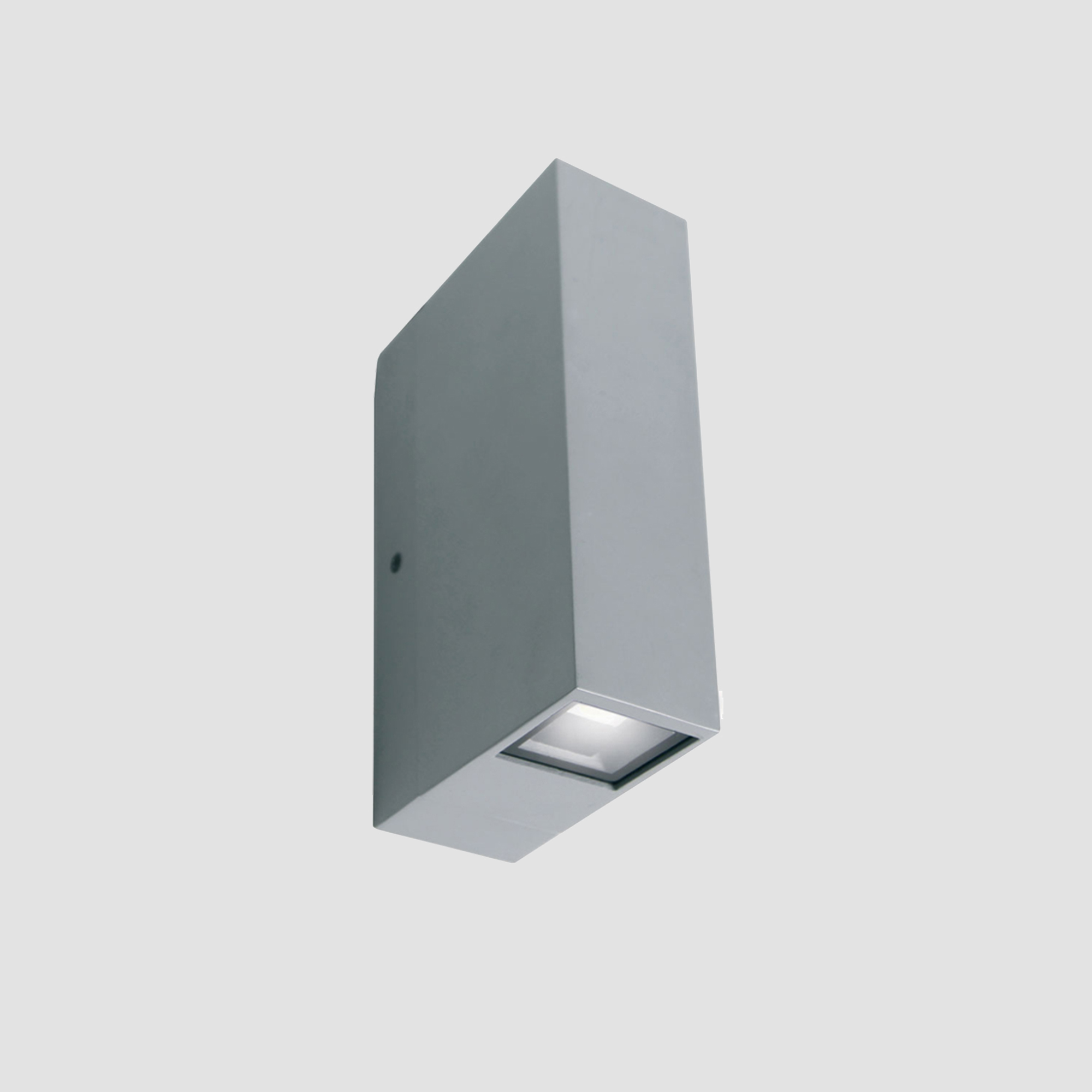

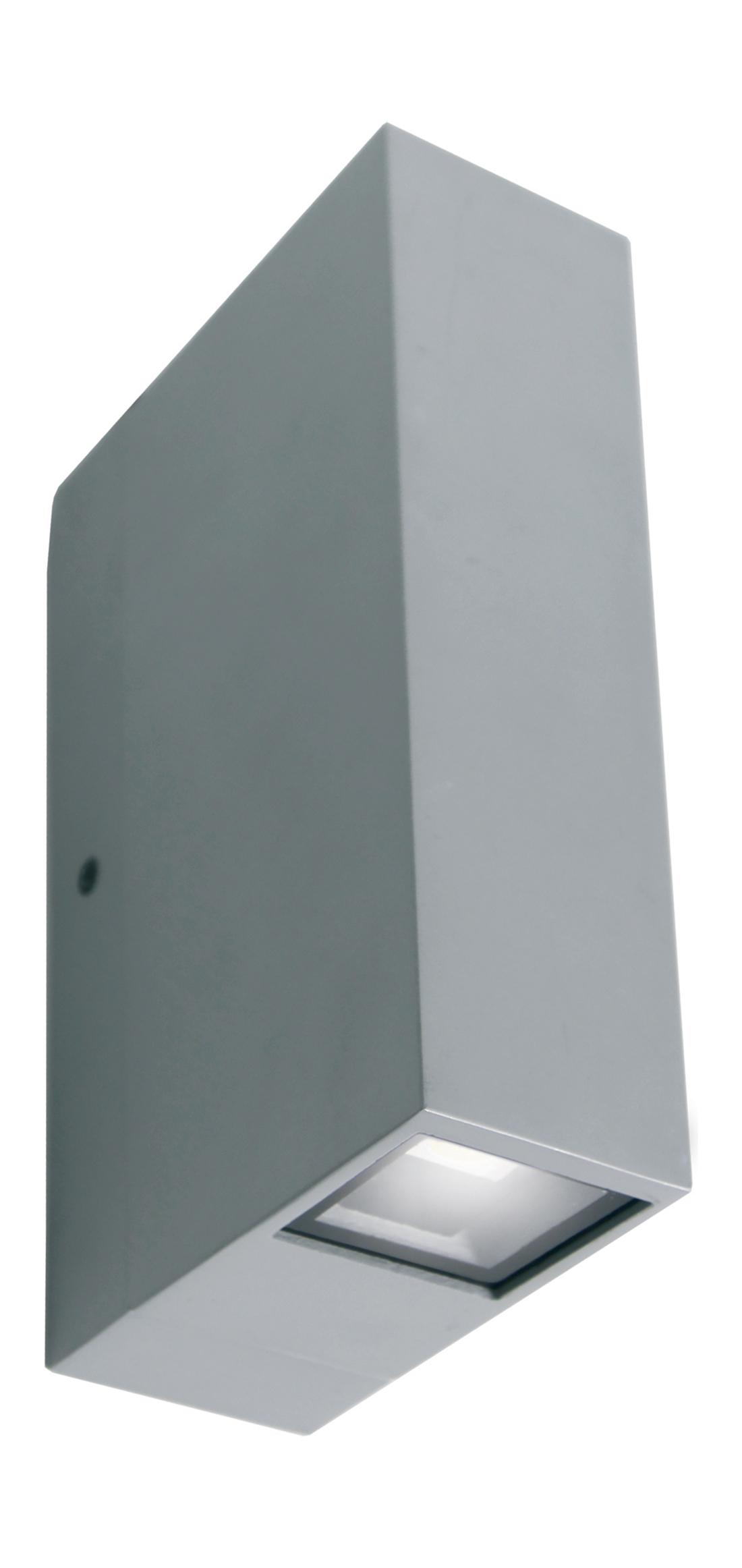

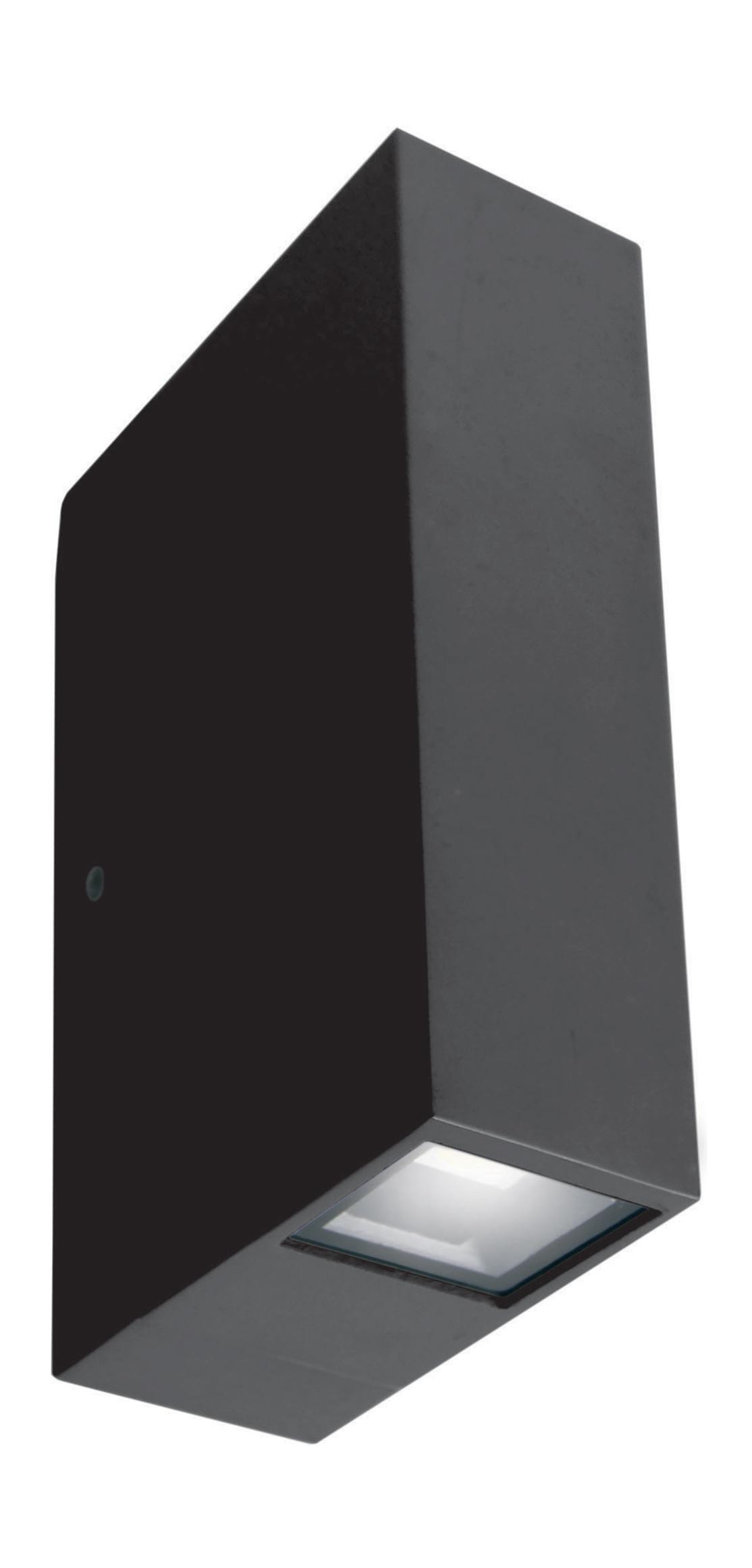

Blade S ™

  • Body and trim: Die-cast aluminum.
  • Finish: Powder coated, Aluminum Grey or Graphite Satin.
  • Lens: Tempered safety glass.
  • Gaskets: Heat resistant silicone.
  • External screws: 304 stainless steel.
  • Minimum Starting Temperature: -30°C.
  • Drivers for white LED: Integral, HPF electronic for 120-277V.
  • Mechanical: Mounts directly over a 2" x 3" electrical junction box (by others).
  • Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

See specification for more information
