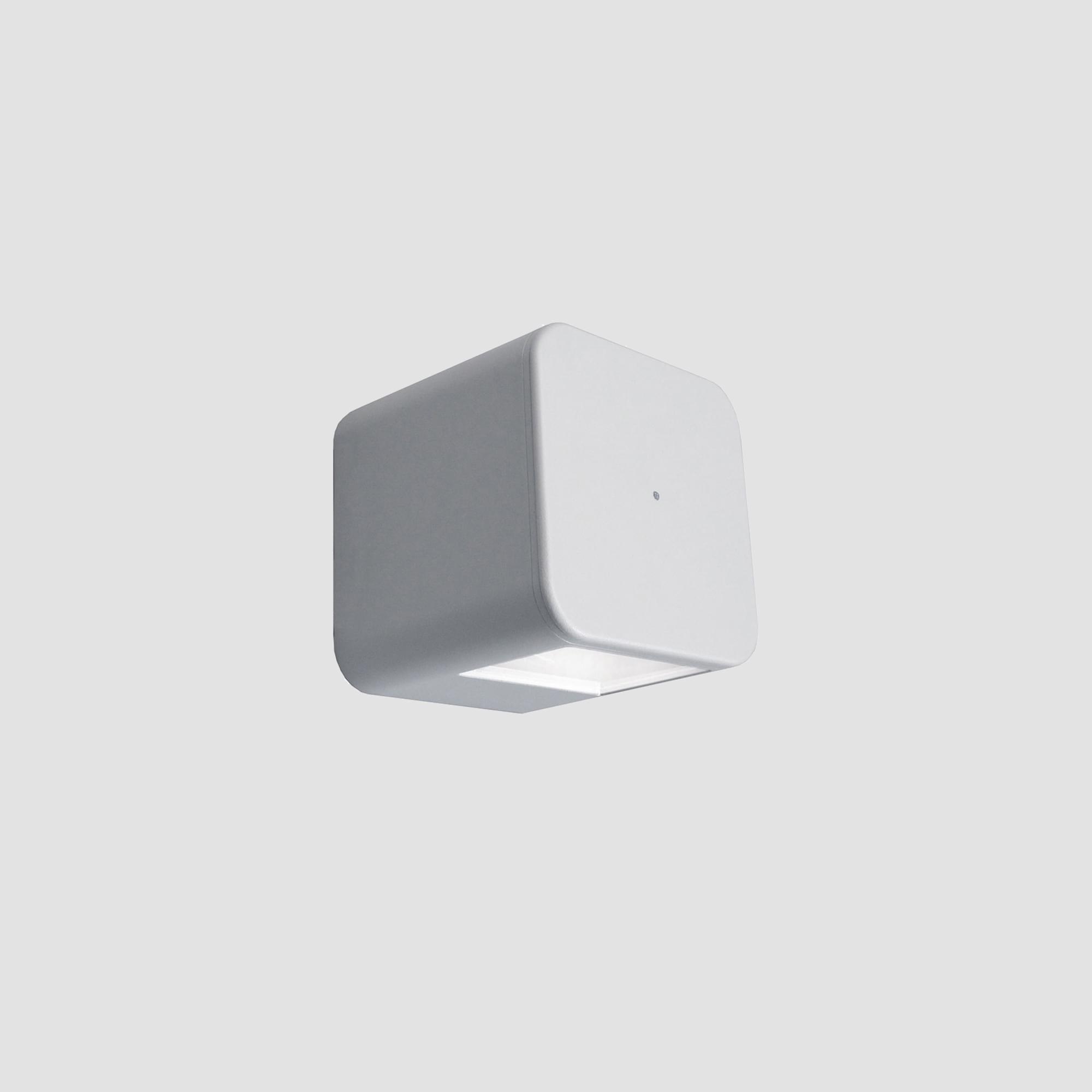

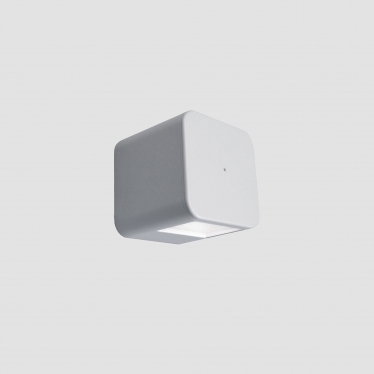

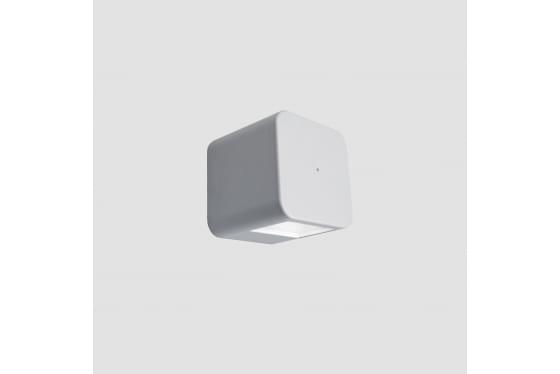

132-7170
132-7170 1654-slider-3850 1321-slider-4800 1335-slider-1260 1336-slider-9050

Downloads : technical modifications reserved

Specificatie Massio (pdf)

Betacalco Massio ™

  • Body and trim: Low copper, die-cast aluminum highly resistant to oxidation.
  • Diffuser: 3mm/0.12" tempered glass/convex lens.
  • Gasket: Silicone.
  • Finish: Powder coated.
  • External screws: A4 stainless steel treated with highly antioxidant water-repellent lubricating solution to ensure easy opening.
  • Cable entry: M20 gland for DIA 8-12mm/0.2-0.47" cables.
  • Drivers: HPF, electronic for 120V/277V.
  • Mechanical: For surface mounting.
  • Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

See specification for more information.
