Downloads : technical modifications reserved

Specifications Precision Lighting EVO S16 Short Snoot (pdf)

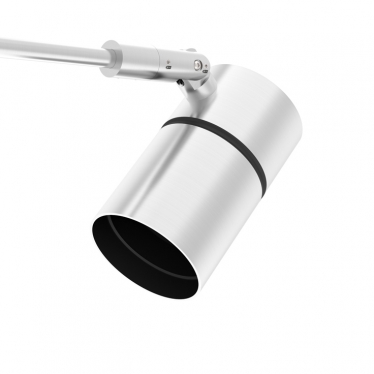

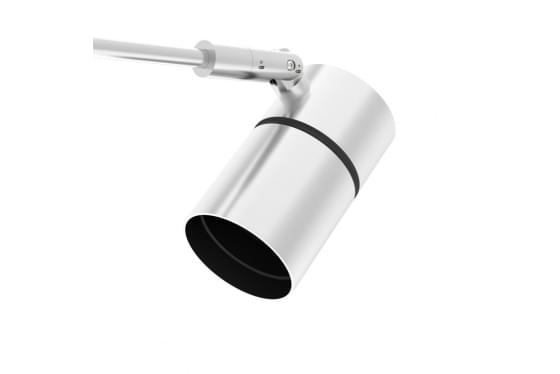

Precision Lighting EVO - Single Source LED S16 Short Snoot

Evo S16 Short Snoot is a single source stem-mounted LED spotlight that comes as standard in white, black and brushed aluminium finishes. It has five site changeable optics for flexible distribution. The ultra narrow spot beam in our 9W 700lm module has a peak intensity of 32617cd. The Evo S has a 360 degree bearing aided rotation and 180 degree constant torque tilt mechanism, both lockable. The Jack Plug system enables the luminaire to be easily disconnected and reconnected to all of Precision Lighting’s systems. The onboard 24V driver ensures overcurrent protection and is not polarity sensitive. An external AC to 24V DC power supply is required, please refer to our compatibility list.

Please enquire as to the availability of alternative colour temperatures or finishes.

Technical Specification

·         Category: IP20

·         Material: Machined AL 6063-T6

·         Finish: Brushed Aluminium | Black | White

·         System: Monopoints | LV Tracks

·         Lockable: Pan & Tilt

·         Accessories: Snoots | Louvres | Lenses

·         System Power: 9W

·         Gear/PSU/Driver: External 24V CV | 1-10V

·         Weight: 377g

·         Listing Conformity: ETL USA & Canada, CE UK & Europe

Optical

·         Module Output: 700lm

·         Absolute Output: 670lm

·         Colour Temperature: 3000K 2700K

·         CRI: 92

·         Optics FWHM: 6 | 10 | 15 | 30 | 55

See specifications for more information, or get in contact with The Lux Company.
