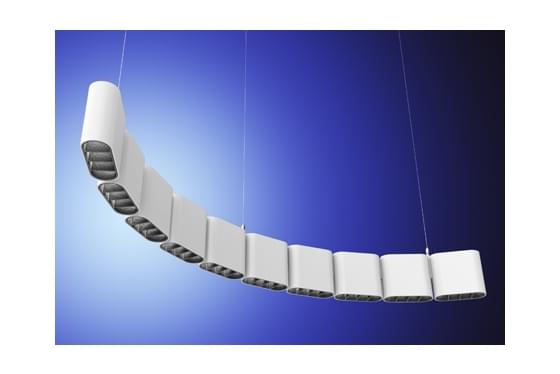

The Radiant Centura 40 IP20 C-curve Up and Downlight is a flexible LED interior linear lighting system, designed to make complex designs simple. An innovative design offers the flexibility to follow curved surfaces, encircle columns and domes, and to make irregular shaped pendants, all whilst offering excellent lighting control and uniformity.

The system is available in uplight and downlight solutions, surface mounted or suspended,and with a light output of up to 5,000 lumens per mtr, making it ideal for a wide range of application areas including architectural, hospitality, leisure and retail.

The body and anti-glare louvres are available in all RAL colours, including gold for warmth, black for a dark light effect and red for dramatic impact.

As well as the flexible hand-bendable versions the system also includes fixed shapes including curves and rings of various shapes and sizes using the same components.


The system has integral Radiant designed LV constant current drivers so long lengths can be lit from a single large remote power supply unit.

Dimming options include 1 – 10V, DMX and DALI with one dimming kit able to control up to 400 metres of the system.


See specification for more information or click here
