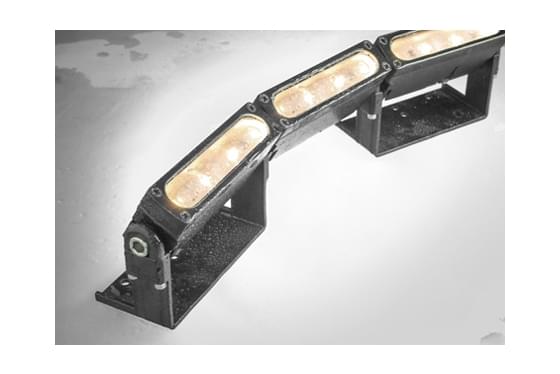

Radiant 3D LED Flex 25 IP66

The Radiant 3D LED Flex 25 IP66 system is designed to be used in a wide variety of exterior lighting applications where a lower light output and smaller width is needed than the larger types also available in the range.



2 or 4 x high power LEDs with lenses per module:  For use in exterior indirect cove lighting or direct wall washing applications where the building surfaces are non linear with curved profiles. Each module - 2 or 4 x Cree XPE, XPG or XQE LEDs LEDs with Ledil Lisa lenses. Up to 3.5 Watts per 100mm module. Dimming options available: 1-10V, DMX and DALI. Separate dimming channel. Various mounting options and bracket types are available.



8 or 12 x 0.3 Watt medium power LEDs with white reflector per module:  For use in exterior indirect cove lighting applications where the building surfaces are non linear with curved profiles. Each module - 8 or 12 x 0.3 Watt Osram, Samsung or Luminus LEDs, without lenses. Up to 3.5 Watts per 100mm module. 30 Volt DC supply. High efficiency white reflector. Dimming options available: 1-10V, DMX and DALI. Separate dimming channel. Various LED colour temperature and CRI options available.



See specification for more information
