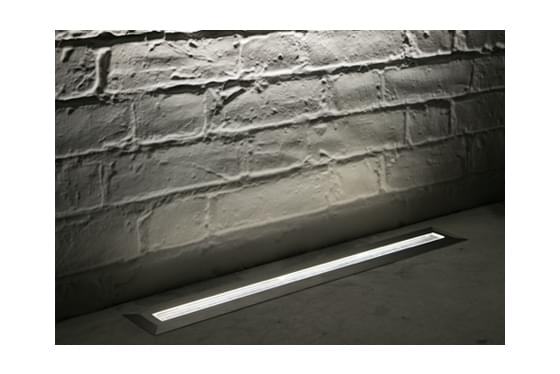

The Radiant Euclid 60 In-Ground system has been developed for use in exterior wall grazing lighting applications. It is IP68 rated to 100mm depth.
The high power optical system has been developed to produce an ultra narrow, dot free, line of light.
Dark areas between luminaires are minimised with an innovative frame detail.
Light engine options: mid-power Osram, Samsung or Luminus LEDs with a linear lens and narrow optical film, or high power Cree or Osram LEDs with Ledil Tina2 lenses Up to 60 Watts per Mtr.
The system incorporates mains voltage dimmable drivers. 230 V AC input Various dimming options available: 1 - 10, DALI, DMX. Separate dimming channel.
A variety of anti-glare materials can be incorporated including a linear micro louvre and honeycomb louvre panels.
See specification for more information
