carloswallwashersquare
carloswallwashersquare carloswallwashersquaretekening

Downloads : technical modifications reserved

carloswallwashersquare (pdf)

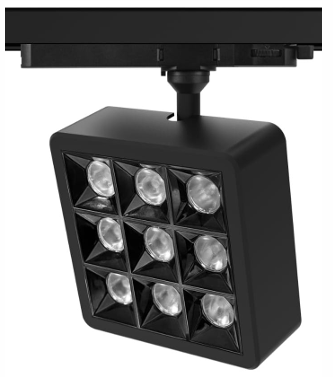

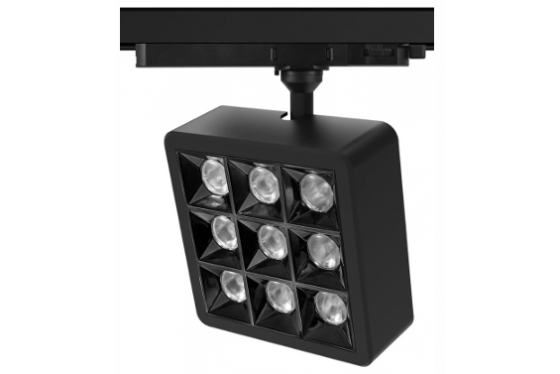

Carlos Wall Washer square

CRI97 Wallwash 75x75º


Product information:

- 35W

- 2600-2900lm (CRI97) 2900-3200lm (CRI90+)

- CRI97 / CRI90+

- Beam angle: Wallwash75x75º UGR 7-10

- CCT: 2700K/3000K/3500K/4000K

- 365º rotation + 90º tilt

- 3-fase track compatible

- Finish: Black/White

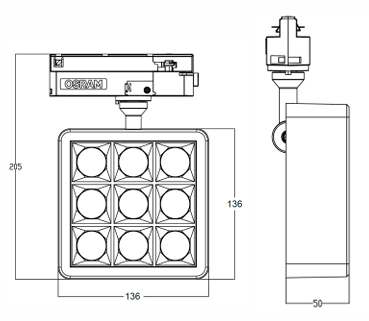

- Size: 136x136x50mm

- On/off, On board dimming,

- Optional with Casambi or dali

- Optional in tunable white via Casambi or dali

- Optional also available in: 15/24/38/50º and 50x50º, 35x70º
