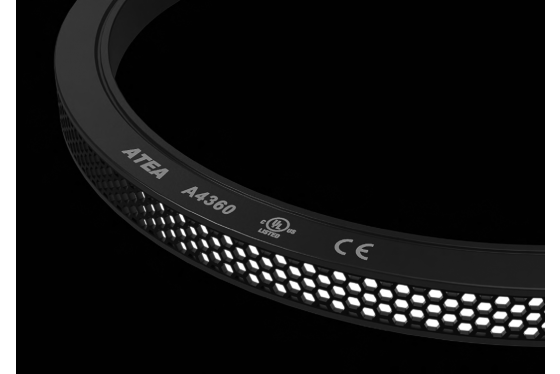

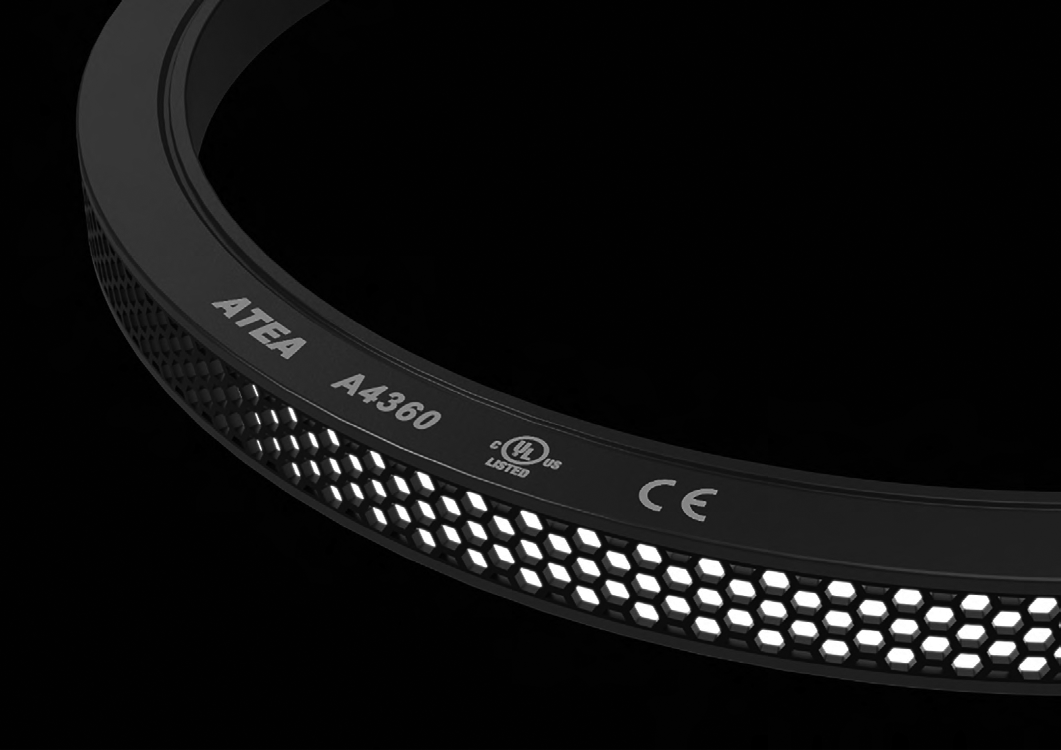

ATEA NEO 3D HONEYCOMB

Flexible light line with low glare honeycomb louver

  • CCT: 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K
  • IRC Color consistency & CRI: OneBinOnly & CRI 90+

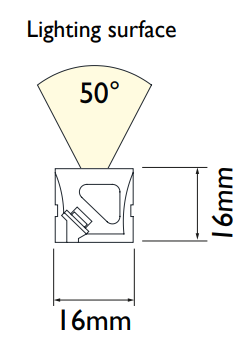

  • Luminous output & Beam angle: 280 lm & 50° (UGR<19)
  • Power: 14w/m
  • Cutting Pace: 50mm

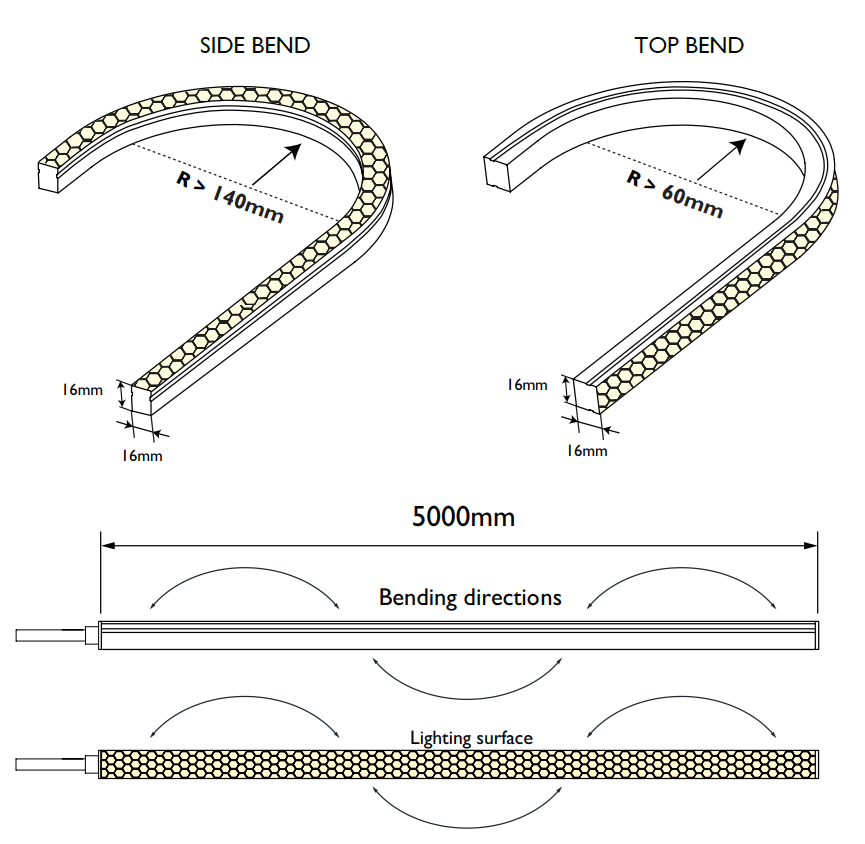

  • Dimensions & min. bending radius: 5000 x 16 x 16 mm &  R > 60 mm for Top Bend and R >140 mm for Side Bend
  • Standards: IP67 I IK06 I LM80 I CE I UL Listed
  • Flame resistant - UV resistant - Solvent resistant - Saltwater resistant
  • Input voltage & Class: 24 Vdc & class III
  • Ambient temperature: -20ºC/+45ºC

See specification for more information or click here
