ATEA NEO TOP ASY

NEO TOP MINI ASY RECESSED

Flexible Dot-free Asymetric Recessed light line, top bend

  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K
  • IRC Color consistency & CRI: OneBinOnly & CRI 90+
  • Luminous output & Beam angle: 430 lm & 120° Asymétrique 10°
  • Power: 9w/m
  • Cutting Pace: Free cutting

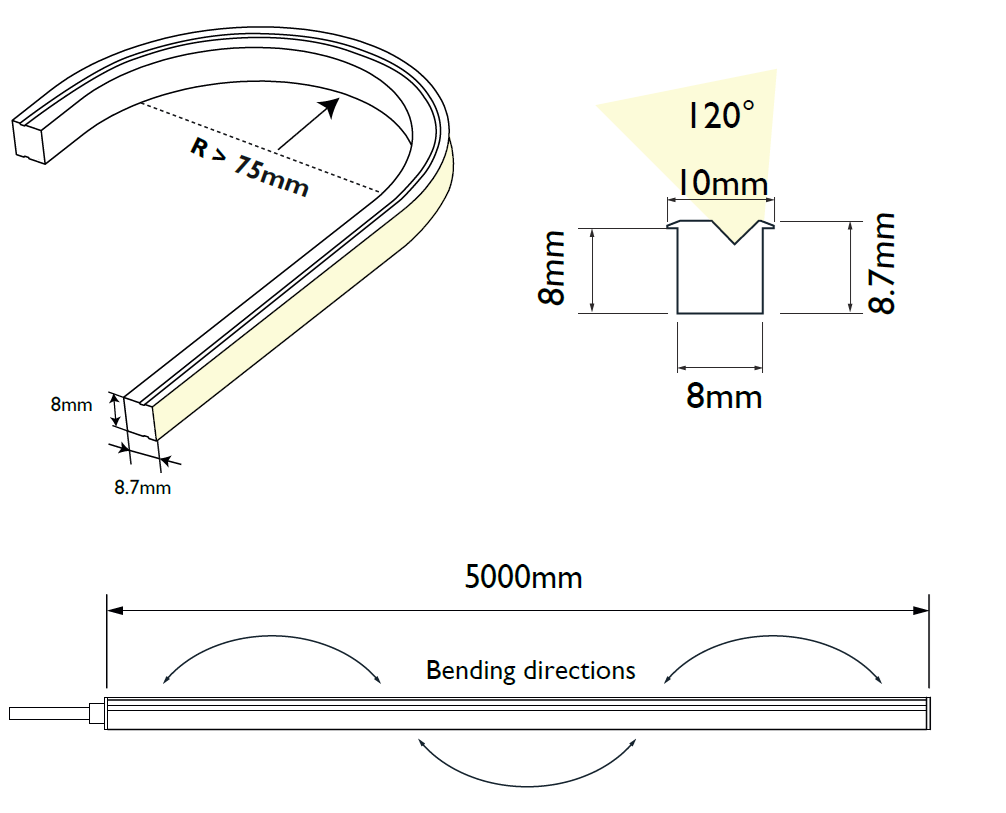

  • Dimensions & min. bending radius: 5000 x 10 x 8.7 mm & R>75 mm
  • Standards: IP20 - IP67 I IK03 I LM80 I CE I UL Listed
  • Flame resistant - UV resistant - Solvent resistant - Saltwater resistant
  • Input voltage & Class: 24 Vdc & class III
  • Ambient temperature: -20ºC / +45ºC

See specification for more information or click here
