Downloads : technical modifications reserved

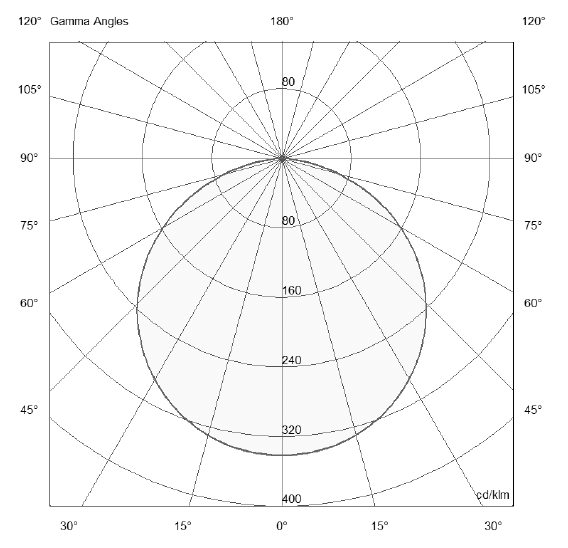

4516-photometrics (png)
datasheet4516 (pdf)

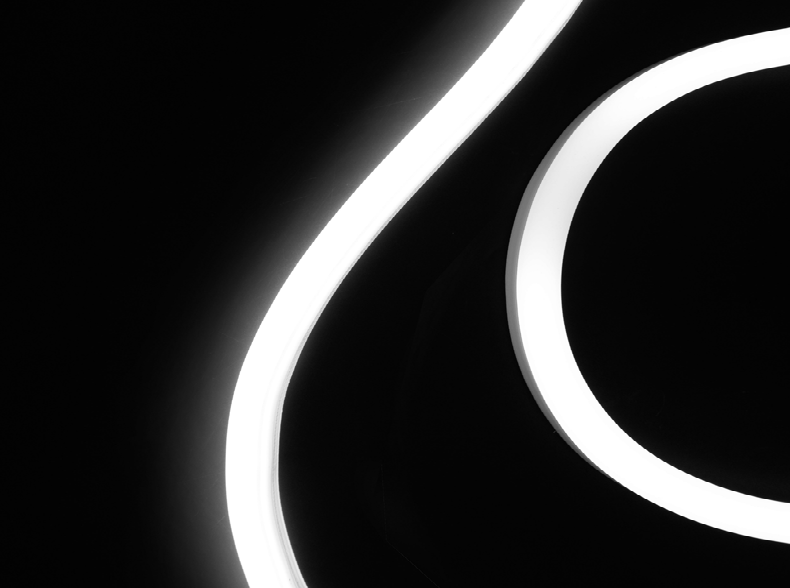

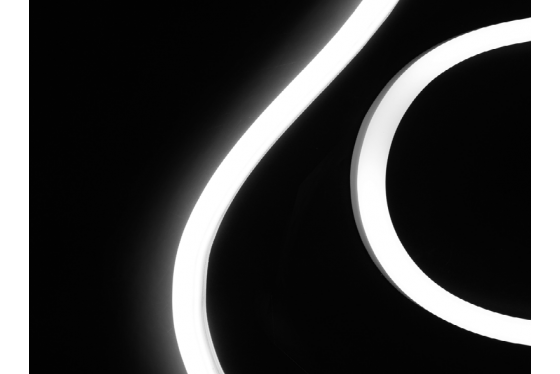

NEO SIDE - High Output

Dot free flexible LED light line, side bend
A4516

  • CCT 2100K - 2400K - 2700K - 3000K - 3500K - 4000K - 5000K - 6000K DW - RGB - RGBW
  • Color consistency & CRI OneBinOnly I 90+
  • Luminous output & Beam angle (@4000K) 1050 lm & 110°
  • Power 15w/m
  • Cutting pace White:50 mm I RGB, DW:62.5mm I RGBW:83.3mm

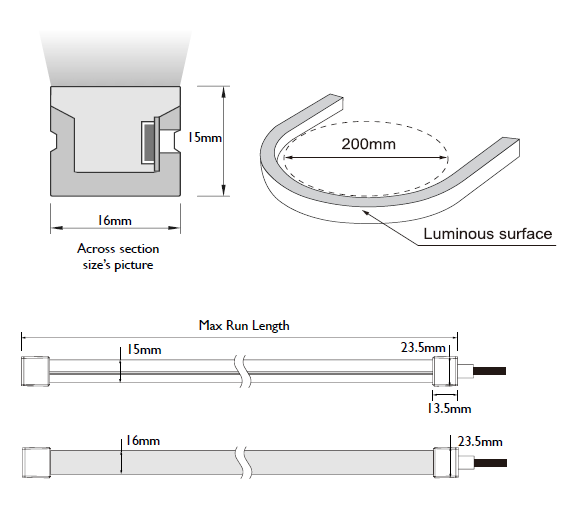

  • Dimensions & min. bending radius 5000 x 16 x 15 mm (White 12000mm) I > 200 mm
  • Standards IP67 I IK08 I LM80 I ETL I CE Flame Resistant - UV Resistant - Solvent Resistant - Saltwater Resistant
  • Ambient temperature - 20°C / + 40°C
  • Input voltage & Class 24 Vdc I class III

See specification for more information or click here
