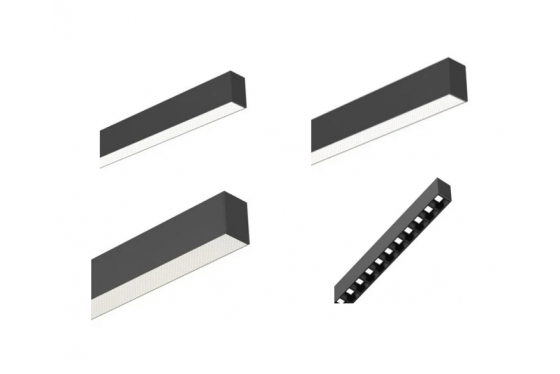

The DASH series combines the latest LED technology with a linear design made in europe in two versions of light track width 40mm (DASH 40), 50mm (DASH 50) and 70mm (DASH 70). Whether as a recessed version with mounting trim, ceiling surface mounted solution, pendant luminaire or by wall mounting – DASH creates a variety of solutions for the needs of your project.

The extruded aluminum profile channel is available as standard in matt powder-coated white (RAL 9016), silver (RAL 9006) and black (RAL 9005). The driver, optionally ON-OFF or DALI Dim, is integrated in the light channel. For a homogeneous light pattern, the DASH series offers a choice of diffuser in PMMA opal or microprismatic optics for reduced luminance.

In addition to the classic recessed and surface-mounted ceiling versions, DASH go for a pendant LED luminaire with purely direct beam or direct/indirect beam incl. continuously height-adjustable wire suspension. In addition, the DASH light lines are also available as LED wall surface-mounted luminaires with direct beam or direct/indirect beam.

On request, you have the possibility to give your DASH Linear System an individual touch with desired color, desired lengths, as well as the integration of various components, such as emergency lighting components or sensor technologies.

DASH light lines at a glance:

  • 40mm (DASH 40), 50mm (DASH 50) and 70mm (DASH 70) light track width
  • Profile channel made of extruded aluminum profile
  • Powder coated surface in white (RAL 9016), silver (RAL 9006) or black (RAL 9005)
  • Ceiling recessed and surface mounted purely direct distribution
  • Pendant luminaire and wall surface-mounted luminaire direct distribution or direct/indirect distribution
  • diffuser optionally in PMMA opal or with microprismatic optics
  • color rendering index: CRI>80 or CRI>90
  • 2700K (CRI>90 only), 3000K, 4000K
  • Optionally switchable (ON-OFF) or continuously dimmable (DALI Dim).
  • Binning initial ≤ MacAdam 3
  • Protection class: I
