Formalighting Moto-Zero Pro

Moto-Zero PRO are intelligent due to their inbuilt memory,allowing them to instantly recall pre-recorded position, color temperature, beam angle, and dim level settings previously recorded via CASAMBI™ Control app.

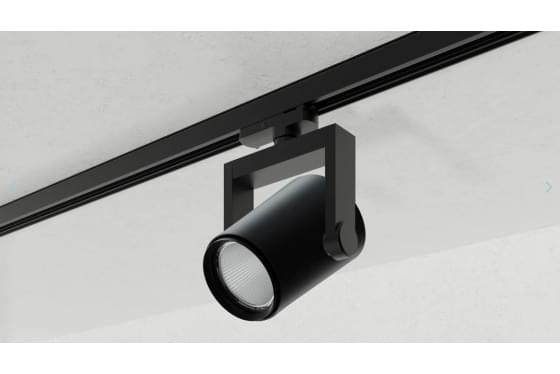

Motorized track mounted spotlight with light head and control gearbox in cast aluminium. Moto-Zero Pro 130 is inclusive of adapter compatible with 3 phase eurotype track.
The control gearbox is available in two different shapes, D and S.
Two DC motors drive movements, offering ±90° vertical tilt and 350° horizontal Pan motion. The zoom version consists of a third motor that allows light beam adjustment.

LED Sources
COB LED. High Power LED. Lumenetix Full Spectrum.
Tuneable White. RGBW (Moto-Zero 130 PRO).
CRI: 90 | CCT: 3000K, 4000K, Full Spectrum, Tuneable White.
Other CRI and CCT options available on request.

Lens or Reflector (according to the chosen light source).
Beam Angle: Super Narrow (7°) / Narrow / Medium / Wide.
Zoom Lens 7°-18°. Tuneable White Zoom Lens 14°-28°.

Dimmable driver integrated in the gear box.
Motion Control: Casambi.
Dimming Options: Casambi, 0-10V, DALI, DMX.
Colour Tuning: Casambi, DMX.

Linear spread, honeycomb louvre, Visor, Snoot.
Use of CASAMBI™ scene control to recall Moto Zero PRO from ground level with pre-recorded position and light settings, reducing set up time maximizing the portability of space.
Application areas: retail, museums, hospitality, restaurants.
