Formalighting Moto-Venus Concave Square
Body

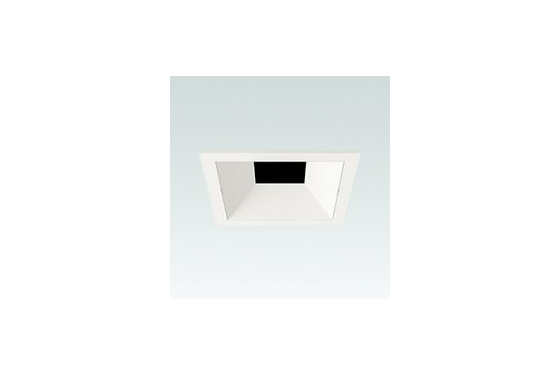

Motorized square recessed luminaire with mounting trim and light body made of cast aluminium.
Body aesthetic available in Flat or Concave design.
The luminaire includes brackets for trim installation on ceiling thickness max. 32mm, or trimless installation (only Venus 125) on ceiling thickness max. 25mm.
Two remote controlled DC motors drive the movements of the fixture.
Moto-Venus 70 is tiltable vertically 0-30° in two directions, Moto-Venus 125 is tiltable vertically 0-45°in two directions.
All the fixtures are rotatable horizontally 350°.
The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.
LED Sources
COB LED.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI and CCT options available on request.
Optic
Reflector + diffuser.
Beam Angle: Narrow / Medium / Wide.
Driver
Supplied with remote dimmable driver.
Motion Control: Casambi.
Dimming Options: Casambi, 0-10V, DALI.
100-277V 50/60Hz.
Accessories
No accessories available
Applications
The smallest motorized recessed luminaire in the market.
The MOTOLUX technology add the versatility to adapt the direction and intensity of light to any type of environment.
Application areas: hotels, residential, lobbies, offices, restaurants.
