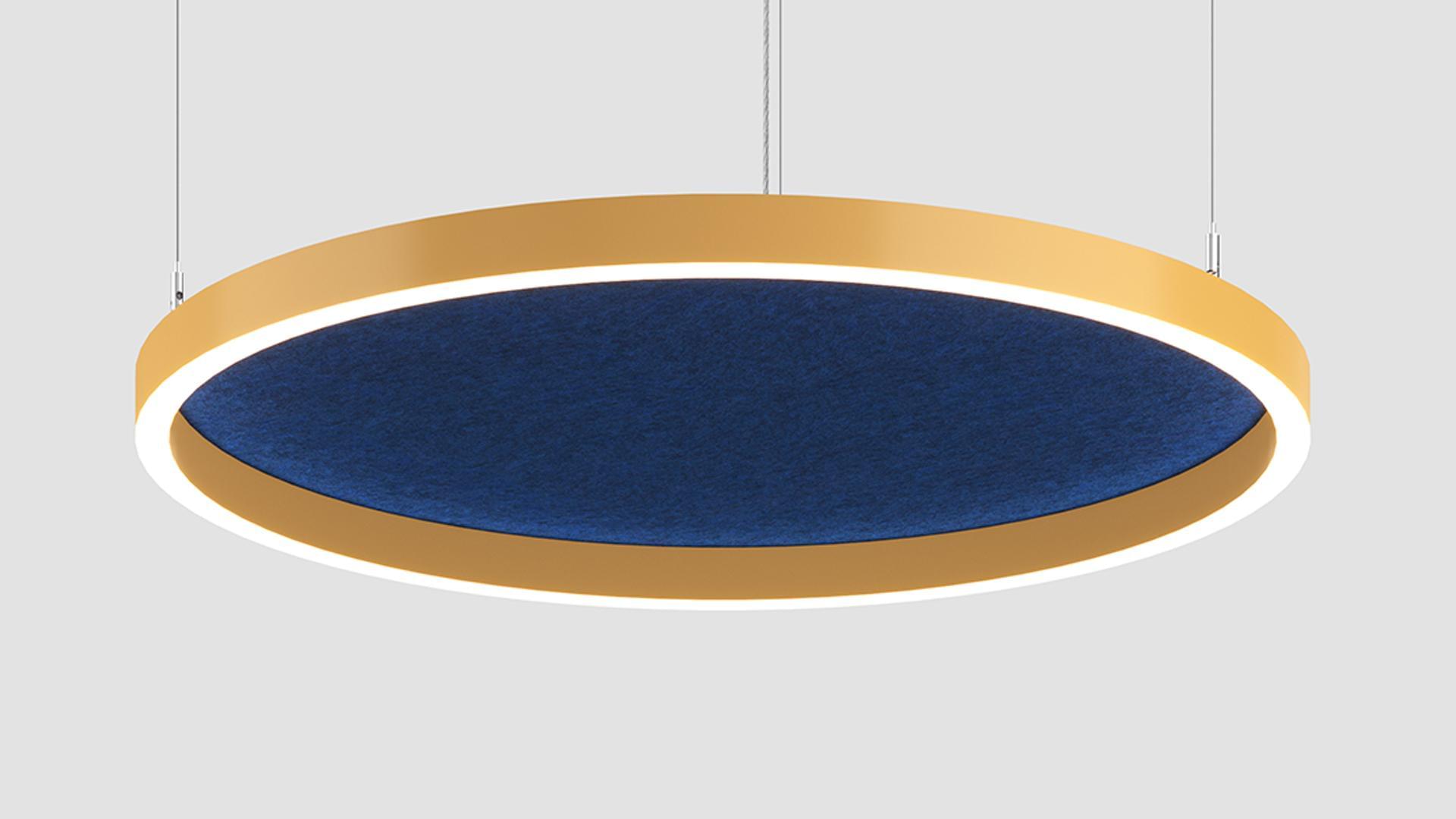

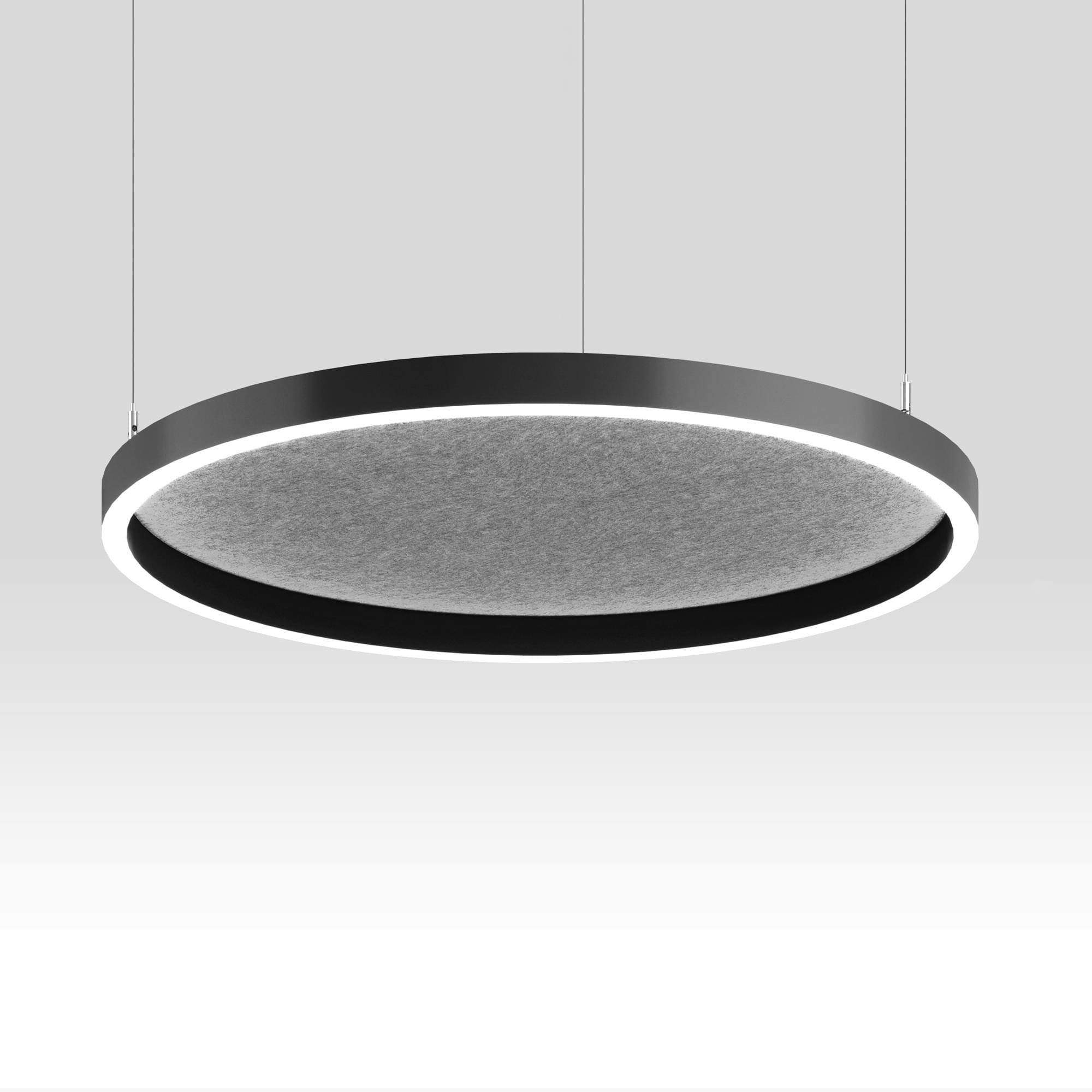

Beta-Calco MICRO RING II™ acoustic

With a super slim profile and 8 diameters ranging from 2’ to 12’, MICRO RING II is ideal for creating sizable multi-tiered circular arrangements. The ring emits direct/indirect light and can be coordinated with 5 other emission options in the MICRO RING family for creating light layers. Buoyant and energetic, MICRO RING II is just as impactful as a single standalone piece, especially with the halo effect created from the indirect light. For sound comfort, MICRO RING II is available with an acoustic panel up to 8’ in diameter. Acoustic panels are designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows. For a whimsical style, combine MICRO RING with MICRO TRIANGLE or MICRO QUAD.

Remote Emergency
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Remote, HPF electronic drivers for 120-277V, 347V (EU-240V) dimming. Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation.

Delivered Lumens
Delivered lumens & LPW based on 4000K (min 80 CRI).
