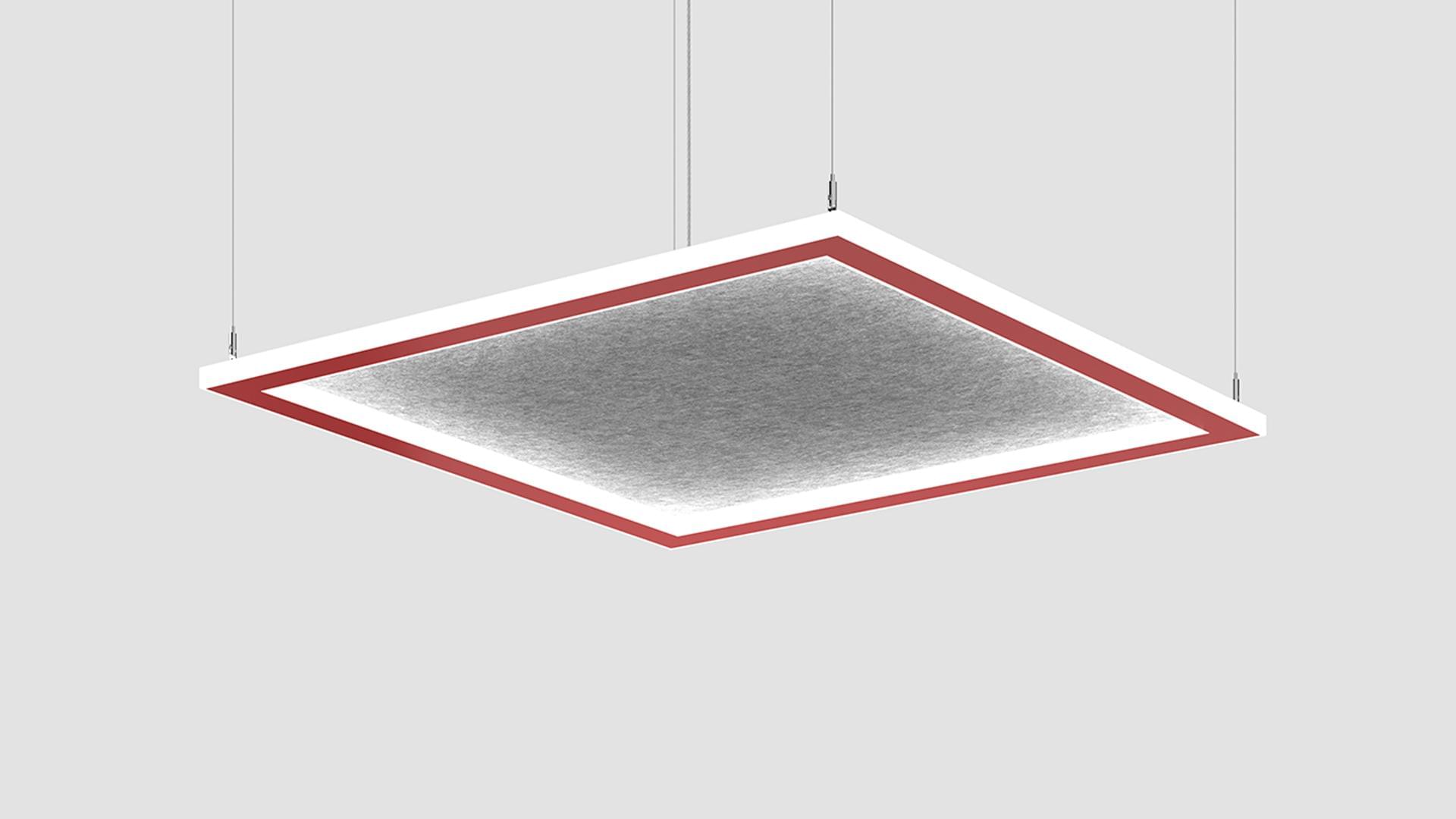

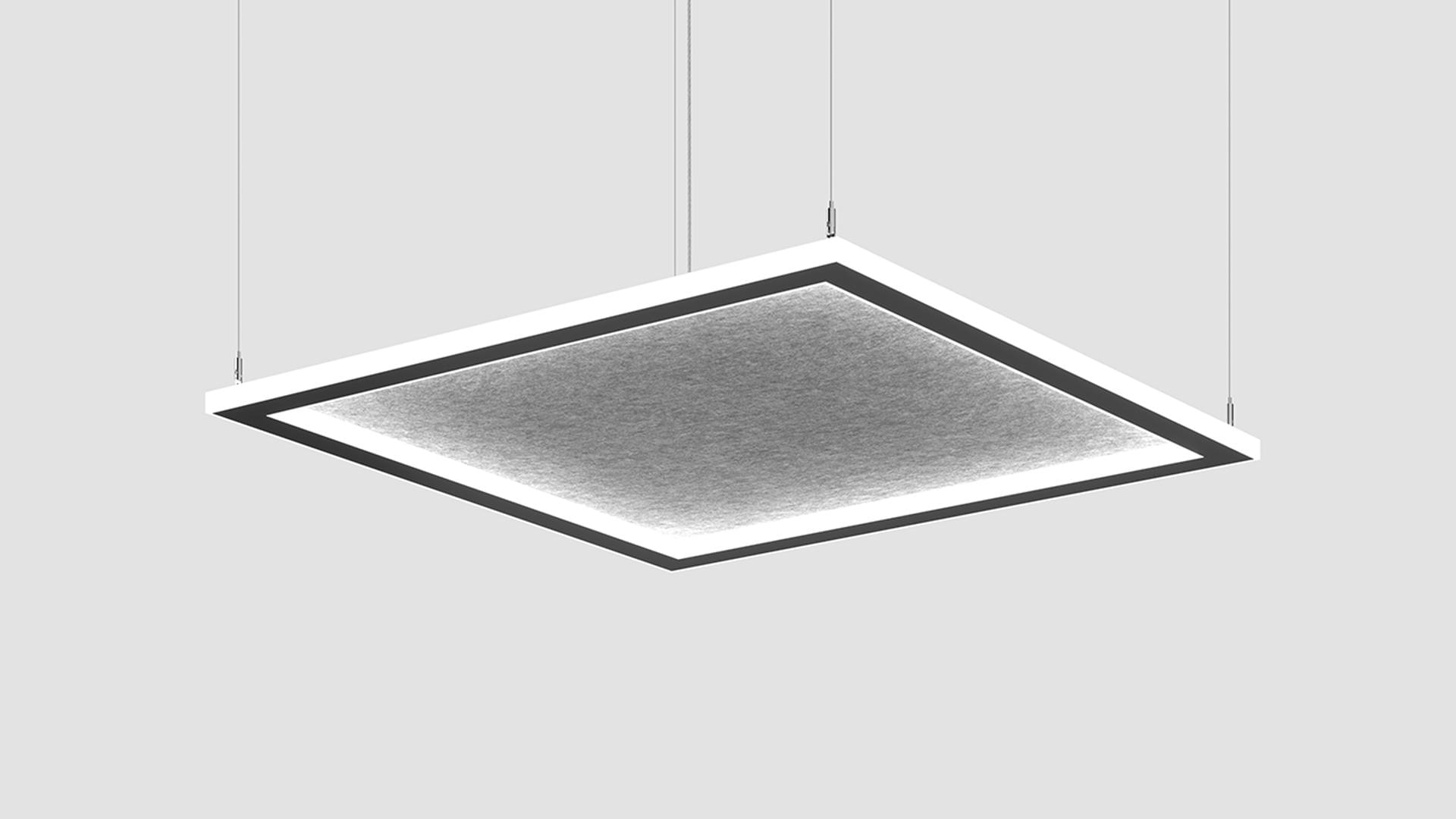

Beta-Calco MICRO QUAD DE™ acoustic

The straight lines and right angles of the rectangle add a balanced and grounded feel to a space. With a super-slim 1” profile and several quadrilaterals ranging from 2’ to 7’ squared, MICRO QUAD DE is ideal for creating and complementing grid effects or for creating sizable multi-tiered arrangements. The light emits from the inner and outer sides of the frame and can be coordinated with MICRO QUAD II which emits direct and indirect light. For sound comfort, MICRO QUAD DE is available with an acoustic panel designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows. With the light emitting from the inner side, the acoustic panel is illuminated, creating another decorative dimension. For a whimsical style, combine MICRO QUAD with MICRO RING or MICRO TRIANGLE.

Remote Mounting Of Drivers
Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

Delivered Lumens
Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

HPF electronic drivers for 120-277V (EU-240V).
