Beta-Calco MICRO ELLIPSE II™ acoustic

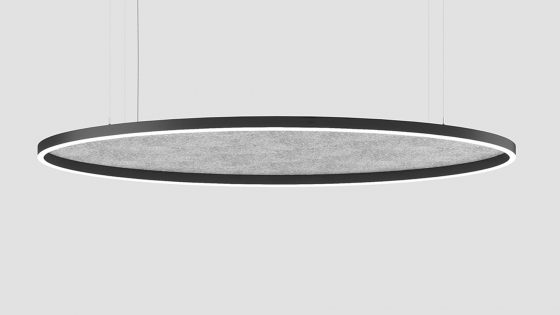

No shape is more graceful than the ellipse. With a super-slim 1” profile and lengths ranging from 3’ to 7’, MICRO ELLIPSE II is ideal for creating a lasting impression. The light emission is direct or direct/indirect and adds a halo effect which contributes to the ambient light in the space. For sound comfort, MICRO ELLIPSE II is available with an acoustic panel designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows.

Remote Emergency
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Remote Mounting Of Drivers
Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

Delivered Lumens
Delivered lumens & LPW based on 3000K (min 80 CRI) for White LEDs only.
