Downloads : technical modifications reserved

cobra-flex-chain_complete-length-list_202206-20 (pdf)

Formalighting Cobra Flex Chain System & Linear

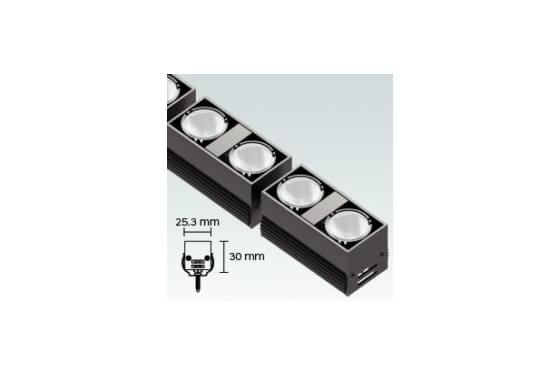

Surface mounted modular system in extruded aluminium, LED links connected by a steel wire enabling adjustment of each individual LED link in 3 directions.
Available in different length configurations based on a 54mm link (2 LED per link) with a 64mm increment. Section 28.5 x 30mm. Its flexible structure maintain a constant 30mm pitch between the LED.

Mounting options:
U mounting clips.

* Plastic free packaging.

LED Sources
Power LED.
CRI: 75 & 90 | R9: >90 | CCT: 2100K, 2400K, 2700K, 3000K, 3500K, 4000K.
3-Step MacAdam.
Other CRI and CCT options available on request.

Beam angle: 10° / 17° / 29° / elliptical (15° x 50°).
Wallwasher optics.

Driver not included to be ordered separately.
Work with 1050 mA Constant Current Driver positioned remotely.

Honeycomb Art. 2D88.
Color filter Art. 2E40.
Mounting accessories included.
Power extension cable Art. 2C47 to be ordered separately.

Ideal for indirect cove illumination, it creates a wall grazing effect for columns and curved architectonic surfaces. Its flexible structure maintain a constant pitch between LED, insuring a continuous illumination without any shadows or dark areas.

Application areas: Cove light, wallwash, residential, hospitality, restaurants, museums.

For more information click here
