Downloads : technical modifications reserved

cobra-linealuce_complete-length-list_202206-20 (pdf)

Formalighting Cobra Linealuce System & Linear

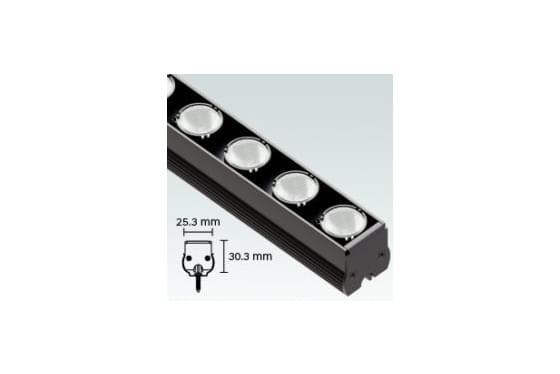

Surface mounted LED system in extruded aluminium. Available in different length configurations starting from 120mm with increment of 120mm.
Section 28.5x30mm.
Constant 30mm pitch between the LED.
Integrated louvre.

Mounting options:
U mounting clips.

* Plastic free packaging.

LED Sources
Power LED.
CRI: 75 & 90 | R9: >50 | CCT: 2100K, 2400K, 2700K, 3000K, 3500K, 4000K.
3-Step MacAdam.
Other CRI and CCT options available on request.

Beam angle: 10° / 17° / 29° / elliptical (15° x 50°).
Wallwasher optics.

Driver not included to be ordered separately.
Work with 1050 mA Constant Current Driver positioned remotely.

Mounting accessories included.
Power extension cable Art. 2C47 to be ordered separately.

Ideal for indirect cove illumination, it creates a wall grazing effect for columns and curved architectonic surfaces.The constant pitch between its LED, insures a continuous illumination without any shadows or dark areas.

Application areas: Cove light, wall grazinger, residential, hospitality, restaurants, museums.

For more information click here
