Formalighting Mini Cobra Pro System & Linear

Body

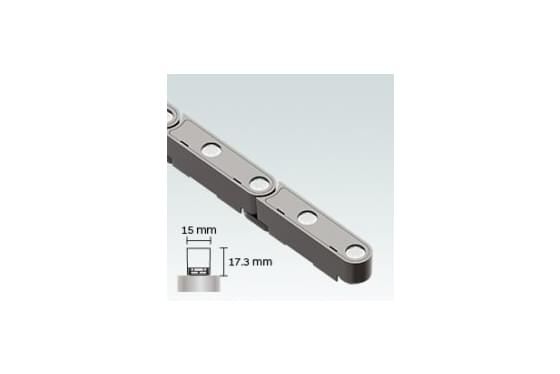

Surface mounted modular system in die cast aluminium. Available in different length configurations based on a 62mm link (2 LED per link) with a 60mm increment.
Section 15x17mm.
Its flexible structure maintain a constant 30mm pitch between the LED.

Mounting options:
Integrated magnets for easy installation.
L mounting brackets included.

* Plastic free packaging.

LED Sources
Power LED.
CRI: 75 & 97 | R9: >90 | CCT: 2100K, 2400K, 2700K, 3000K, 3500K, 4000K.
3-Step MacAdam.
Other CRI and CCT options available on request.

Optic
Lens.
Beam angle: 21° / 31° / elliptical (22° x 47°).

Driver
Driver not included to be ordered separately.
Work with 700 mA Constant Current Driver positioned remotely.

Accessories
Mounting accessories not included.
Power extension cable Art. 2C47 to be ordered separately.

Applications
Ideal for indirect cove illumination, it creates a wall grazing effect for columns and curved architectonic surfaces. It is also a great pick also for display showcase illumination.

Application areas: Cove light, wallwash, residential, hospitality, restaurants, museums, display showcases.
