Formalighting Microline 14x14 Corner Dotless System & Linear

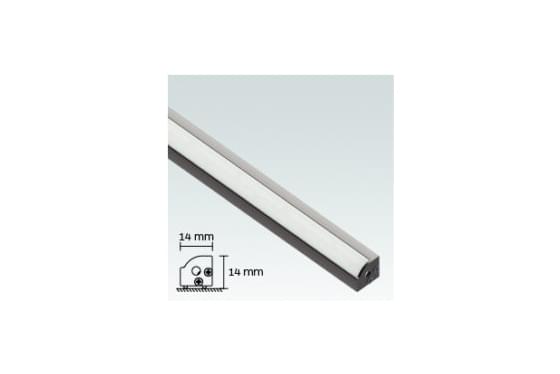

Surface mounted LED system in extruded aluminium. Specific shape to fit in corners.
Available in different length configurations starting from 35mm with increment of 30mm.
Triangular section 14x14mm.
Integrated magnets for easy installation
L mounting brackets.
U mounting clips.
* Plastic free packaging.
CRI: 93 & 97 | R9: >90 | CCT: 1800K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K.
Other CRI and CCT options available on request.
Extra Wide Beam Angle.
Opal Rigid Diffuser (RD).
Driver not included to be ordered separately.
Work with 24V Constant Voltage Driver positioned remotely.
Mounting accessories included.
Power extension cable Art. 2D58 to be ordered separately.
Miniature linear light for showcase and under cabinet diffuse illumination. Its peculiar shape allow it to fit in corners illuminating the surface from a 45 degree angle.
Application areas: Retail, cabinet displays, showcases, jewelry displays, residential, restaurants, museums.
