Body

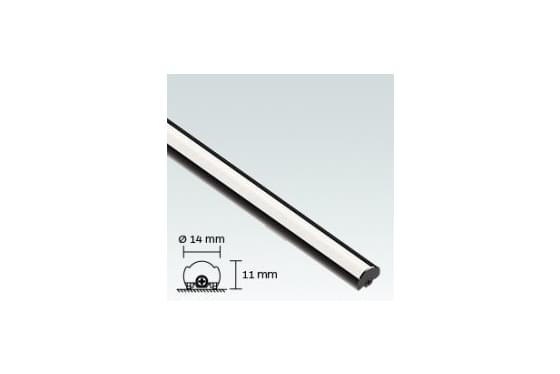

Surface mounted LED system in extruded aluminium. Available in different length configurations starting from 35mm with increment of 30mm.
Section diameter 14mm.

Mounting options:
Integrated magnets for easy installation.
L mounting brackets.
U mounting clips.

* Plastic free packaging.

LED Sources
SMD.
CRI: 93 & 97 | R9: >90 | CCT: 1800K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K.
3-Step MacAdam.
Other CRI and CCT options available on request.

Optic
Extra Wide Beam Angle.
Opal Diffuser (OD), Lenticular Transparent Diffuser (TD).

Driver
Driver not included to be ordered separately.
Work with 24V Constant Voltage Driver positioned remotely.

Accessories
Mounting accessories included.
Power extension cable Art. 2D58 to be ordered separately.

Applications
Miniature linear light with a disappearing look delivers an homogenous and diffuse light effect, making it the ideal product for showcase and under cabinet illumination.

Application areas: Retail, cabinet displays, showcases, jewelry displays, residential, restaurants, museums.
