Formalighting Microline 8x7 Chain Dotless System & Linear
Surface-mounted modular system in extruded aluminium with dotless light effect. Available with integrated magnets for easy installation, U mounting clips, and L mounting brackets, with 0º-90º vertical adjustability.

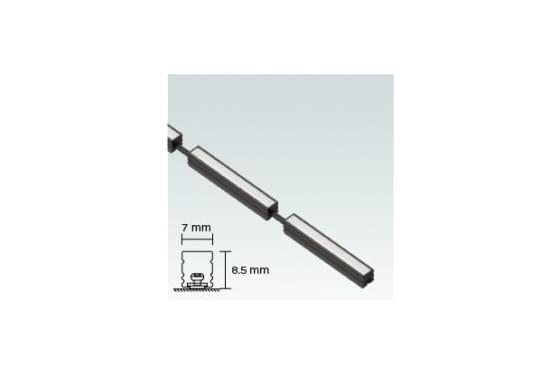

Available in different length configurations based on a 50mm link with a 59mm increment. Miniature section 8mm width and 7mm height.
L mounting brackets.
45º mounting brackets.
U mounting clips.
* Plastic free packaging.
CRI: 93 & 97 | R9: >90 | CCT: 1800K. 2200K, 2400K 2700K, 3000K, 3500K, 4000K.
Other CRI and CCT options available on request.
Extra Wide Beam Angle.
Opal Rigid Diffuser (RD)
Driver not included to be ordered separately.
Work with 24V Constant Voltage LED Driver, max. 3A positioned remotely.
Mounting accessories included.
45º mounting brackets Art. 2F80. Power extension cable Art. 2D58 to be ordered separately.
Miniature linear light with a disappearing look delivers a uniform lighting effect, making it the ideal product for showcase and under-cabinet illumination.
Application areas: Retail, cabinet displays, showcases, jewelry displays, residential, restaurants, museums.
