Formalighting Cobra Infinito Flex System & Linear
Designed by Ponctuelle.
Surface-mounted modular system in extruded aluminum.
Available in different length configurations based on a 54mm link (2 LED per link) with a 60mm increment.

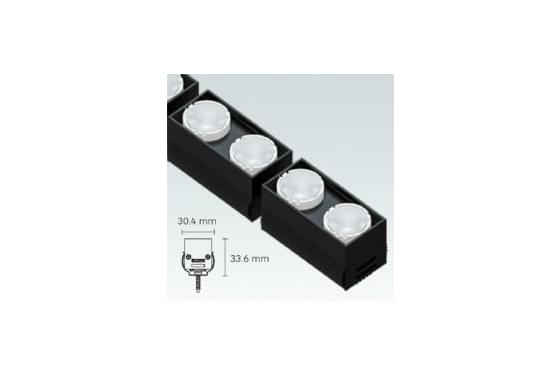

Section 28.5x30mm. Its flexible structure maintains a constant 30mm pitch between the LED.
Mounting options: U mounting clips.
Plastic free packaging.
Power LED. CRI: 90 | R9: >50
CCT: 2700K, 3000K, 3500K, 4000K.
Other CRI and CCT options are available on request.
Beam angle: 10° / 17° / 29° / elliptical (15° x 50°).
Each Cobra Flex fixture comes with dimmable integrated 48V DCDC driver.
Works with integrated power supply positioned remotely.
Power Supply not included, to be ordered separately.
Mounting accessories included.
Honeycomb Art. 2F76, Louvre Art 2F75 to be ordered separately.
Power extension cable Art. 2E46 to be ordered separately.
Ideal for indirect cove illumination, it creates a wall grazing effect for columns and curved architectonic surfaces.
Its flexible structure maintains a constant pitch between LED, ensuring continuous illumination without any shadows or dark areas. Application areas: Cove light, wallwash, residential, hospitality, restaurants, and museums.
