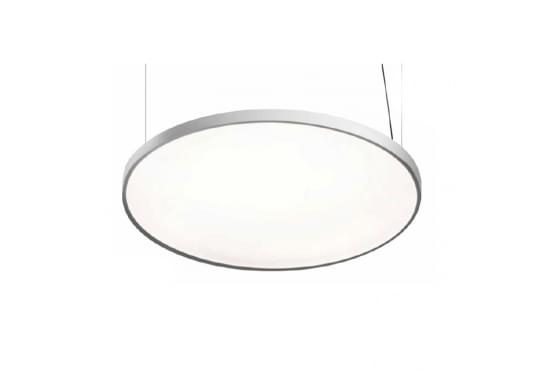

Alphabet FI OMICRON SHALLOW PENDANT

FI OMICRON Shallow Pendant  is a LED circle luminaire, made of an curved extruded aluminum, powder-coated with fine matte finish.
Designed for recessed mounting, providing direct light emission through satined polycarbonate for an almost
homogeneous emission of light or micro prismatic for UGR<19.
Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers On-Off or dimmable.

Features:
• Available in Diameter from 60cm to 120cm.
• Two different Lumen Output types plus Tunable White.
• CRi80, Optionally CRi90.
• CCT 3000K or 4000K, Optionally Tunable White.
• Two different Optic-Diffuser (Opal or Micro Prismatic Opal).
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black or Grey powder coated and in Special Decorative
Black or Red Oxidation, Optionally in Special RAL.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
• U-LOR 50.
